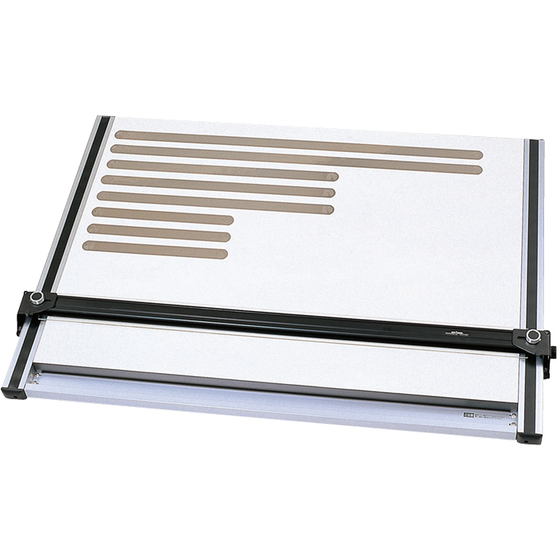

Drapas Board DXM-900N A1 Parallel Ruler
Dorapas Original
A1 size parallel ruler, sister product of DXM-601.
This is a sister product of the highly acclaimed Draphas Board DXM-601. It is a model designed specifically for flat surfaces. It is built sturdy for stability when placed on a desk. It allows for a scale inclination of ±16°. It features exceptionally durable carriage rollers. It comes with a magnet board specification, allowing for immediate drafting when placed on a desk, along with a drawing board angle inclination stand. ■ Features ● Uses a magnet board. ● Completely covers the drawing range of JIS A1 standards. ● Simple operation with an accurate and durable carriage roller system. ● Scale floating mechanism that does not dirty the drawings (infinitely adjustable). ● Scale inverted type for easy replacement and maintenance of drawings. ● Comes with a drawing board angle inclination stand that can adjust the inclination angle in three stages. ● The acrylic part of the scale (bottom) has a cutting edge attached. When used with a cutting mat, cutting work can be performed. This product has two types of dedicated stand drafting tables. For more details, please refer to the PDF catalog. ★ For detailed features, please refer to the PDF catalog.
Inquire About This Product
basic information
●External dimensions: 745×1035mm ●Drawing board: 665×900mm ●Drawing area: 594×900mm ●Included magnetic plates: 800×27mm / 2 pieces, 500×27mm / 3 pieces, 300×27mm / 3 pieces ●Scale floating mechanism: Yes ●Usage incline angle: 0 to 10° (for flat surfaces) ●Board incline angles: No incline, incline angle 3.5°, incline angle 5.5° ●Weight: 9.0kg ★For detailed features, please refer to the PDF catalog.
Price information
Single Item 【09-031】Drapas Board DXM-900N … ¥71,500 Set Sale 【09-041】〈DR-609S II〉Parallel Rule Set (Stand Drafting Table DT-S15N) … ¥125,950 【09-044】〈DR-609P II〉Parallel Rule Set (Pipe Drafting Table DT-P3) … ¥108,900 Prices include tax (as of September 2025)
Price range
P2
Delivery Time
P3
※Due to fluctuations depending on the delivery destination, please contact us if you have any concerns.
Applications/Examples of results
For details, please refer to the PDF catalog or feel free to contact us.
Detailed information
-
【09-041】〈DR-609S II〉Parallel Ruler Set (Drafting Table Stand DT-S15N)
-
[09-044] <DR-609P II> Parallel Ruler Set (Pipe Drafting Table DT-P3)
-
Folded appearance [09-044] <DR-609P II> Parallel ruler set (Pipe drawing table DT-P3)
