Air-operated chemical drum pump CHD1-20ASUS316/HL
CHD1-20ASUS316／CHD1-20ASUS316HL
In addition to the wetted part materials of PTFE and FFKM, SUS316 has been newly adopted for the main body material and wetted material! This allows for compatibility with even more chemicals.
**CHD1-SUS316 Series** CHD1-20ASUS316 (for solvents) CHD1-20ASUS316HL (for solvents / hose-less specification) ● Oil-free air motor type ● Lightweight and compact body ● SUS316 specification with strong chemical resistance **Features** ● Safe and secure due to air drive ● Designed specifically for JIS standard 200L closed drums (large cap G2) ● For low viscosity solvents (below 100cP) ● Discharge rate of 20L/min (with nozzle) ● Discharge only **Applications** ■ Lithium batteries (secondary batteries) ■ Dyeing, semiconductor, disinfectant manufacturing, automotive, home appliance factories ■ Surface treatment in metal plating factories ■ New energy sector **Compatible liquids** ■ Alcohol ■ Thinner ■ Acetone ■ Methanol ■ MEK, etc.
Inquire About This Product
basic information
"About the Ball Valve with Gun Nozzle" Supports ball valve specifications as an option! By installing a ball valve, it is possible to operate the valve opening and closing during liquid discharge. Model: CHD1-20ASUS316/CHD1-20ASUS316HL Compatible container: 200L closed drum (JIS standard: large plug G2/small plug G3/4) Liquid used: solvent Usable viscosity: 100cP Air consumption (L/min): 583 (at recommended supply pressure of 0.5Mpa) Operating air pressure (Mpa): 0.4 to 0.6 Compressor (horsepower): 5 Discharge pressure: 0.035Mpa Maximum discharge volume (at 1cP): 30L/min Maximum lift height: 3.5m Suction lift height: 2m Accessories: Discharge hose: SUS316 hose (Φ19×2m)/none Connection type: Rc3/4 Materials in contact with liquid: Body/Pipe: SUS316/SUS(SCS14)/PTFE/ETFE Packing: PTFE/FFKM Weight (kg): 6.6/5.0
Price range
Delivery Time
Applications/Examples of results
"Improvement Example" Dividing Hydrogen Peroxide Current Situation / Problems × The pump for solvents is expensive × Manual pumps are time-consuming and tiring × Pumps break down quickly ⇩ Improvement Example It is inexpensive and durable, leading to cost reduction Lightweight and easy to transfer from drums 〇 Time savings 〇 Cost reduction 〇 Safety assurance 〇 Reduced heavy labor burden * When using solvents, only materials that do not corrode should be used. * It cannot be used for flammable or volatile liquids.
Detailed information
-

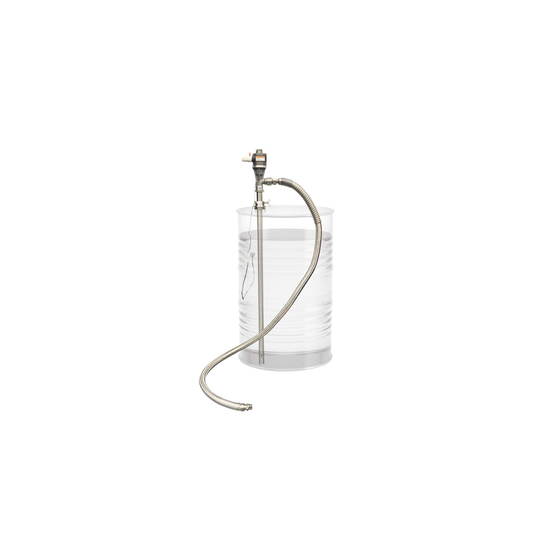

CHD1-20ASUS316 (for solvents)
-
CHD1-20ASUS316HL (for solvents / without hose specification)
