Enhancing safety by utilizing existing retaining walls! Introducing slope protection and reinforcement methods to address changes in the ground.

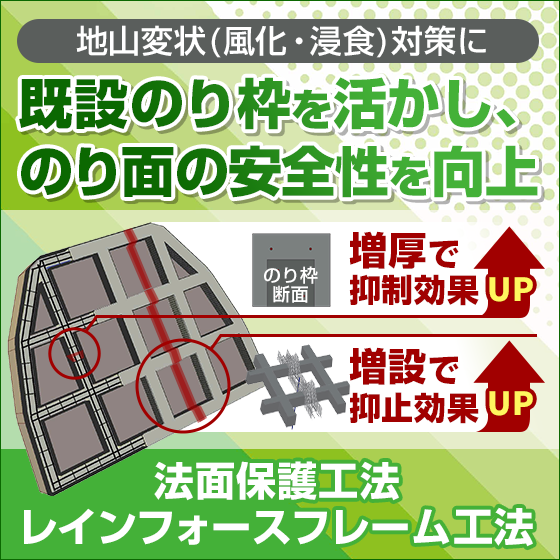

We would like to introduce a new method called the "Reinforced Frame Method" as a countermeasure against the aging of the Free Frame Method, which is one of the slope protection construction methods. Since its release in 1975, the Free Frame Method has seen the passage of time, and the need for aging countermeasures has increased. Additionally, it has become necessary to consider measures against changes in the ground, such as weathering and erosion. Therefore, when the ground deteriorates, it is essential to implement reinforcement measures to address the decrease in slope stability. This method utilizes existing frames to enhance the safety of the slopes when reinforcement is necessary. 【Features】 ■ Increased thickness for enhanced suppression effect ■ Additional installations for improved deterrent effect ■ Significant CO2 reduction effect through the reuse of existing frames We also offer "Gap Filling Material" as a filling material for the hollow space behind the frame. *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 (Thickened Type) ■Cross-sectional shape: B330×H310 ■Wire mesh specifications: Wire diameter φ2.6 / Standard ZAST300 / Material: Zinc-aluminum alloy coated iron wire ■Hoop tie (R) specifications: Wire diameter φ4.0 / Standard ZAST300(H) / Material: Zinc-aluminum alloy coated iron wire ■Effective height (reference): 245mm (D10) *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■ Measures against aging of free frame construction method ■ Reinforcement measures against changes in the ground (weathering, erosion) ■ Improvement of slope stability *For more details, please download the PDF or feel free to contact us.
catalog（2）
Download All Catalogs
CAD data（4）
| Model number | overview | File |
|---|---|---|
| Thick type (1.5-1.5) |
|
|
| Thickened type (1.5-1.2) |
|
|
| Expansion type (1.5-1.5) |
|
|
| Expansion type (1.5-1.2) |
|
