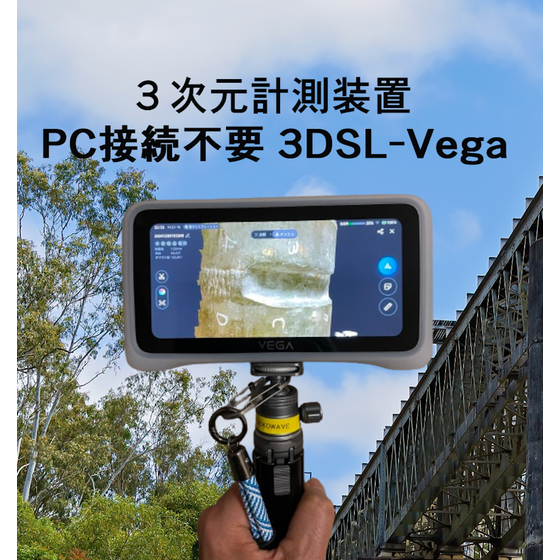

3D scanner that doesn't require a computer
This is a handheld 3D measurement device that does not require a computer for measurement. 【Features】 - No PC connection required - Can measure even in direct sunlight - Generates 3D data independently ✓ Full-color 3D data - Adjustable resolution ✓ 0.1mm ~ 10mm - Can communicate with a PC via WiFi/USB-C ✓ Data transfer to PC ✓ Damage analysis execution on PC - Touch panel color screen ✓ 2K AMOLED, 6.4” - 512GB SSD, built-in battery ✓ Can operate continuously for up to 1 hour ✓ Can operate for longer periods with an external battery connection Please also visit our website. (https://www.seikowave.jp/product/3dsl-vega/)
Inquire About This Product
basic information
■Point Cloud Interval Setting (Variable) HD Mode: 0.1mm ~ 3mm Fast Mode: 0.5mm ~ 10mm ■Working Distance (Range) HD Mode: 100mm ~ 250mm Fast Mode: 350mm ~ 1,000mm ■Composition Mode Selection ・Feature Point Extraction ・Texture Extraction ・Marker Seal Utilization ・Hybrid (Combination) ■Composition Speed (Frame Rate) HD Mode: Up to 15fps Fast Mode: Up to 20fps ■Light Source HD Mode: Infrared MEMS, Laser class 1 Fast Mode: Infrared VCSEL, Laser class 1 ■External Dimensions 180mm x 95mm x 26.5mm ■Scan Unit Weight 535g ■Recommended PC for StarVision Data Processing Software ・Windows 11 ・CPU: Intel Core i7-11800H or later ・Memory: 32GB or more ・USB 3.2 Type-C Port
Price range
Delivery Time
Applications/Examples of results
Application areas: Measurement of surface damage in bridges, pressure vessels, steel structures, concrete structures, etc., and recording of aging changes.
Company information
Seikowave, K.K. contributes to the improvement of safety and security in social infrastructure through the development and sale of 3D measurement devices (3D scanners). In 2010, we established corporations in the United States and Japan, and since then, we have been promoting our business by focusing on the joint development of hardware for 3D measurement devices and software for analysis and evaluation of corrosion, among other things. Leveraging our past technologies and know-how, we provide products and services primarily for the Japanese market that can be used for inspecting the aging deterioration of social infrastructure structures (steel structures and concrete structures) and diagnosing whether the aging deterioration of production facilities in oil and petrochemical complexes can continue to operate safely. Maintenance of aging social infrastructure is an essential field that cannot be avoided. By replacing traditional visual and sensory evaluations with data-based assessments, we can achieve safer maintenance management while keeping costs down. We are committed to promoting our business to continue contributing to the improvement of safety and security in society. Representative Director, Minoru Shinmura
