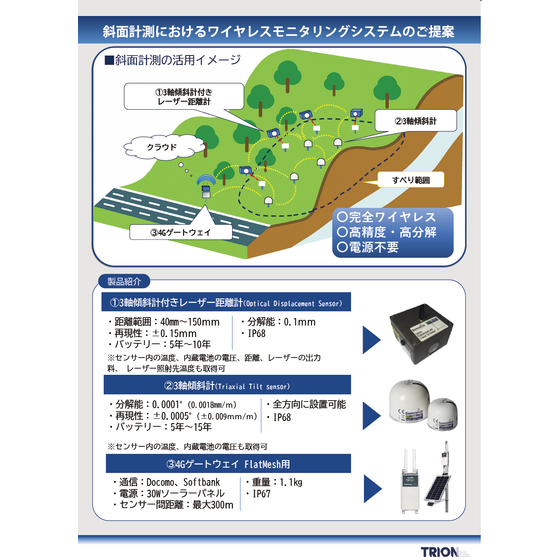

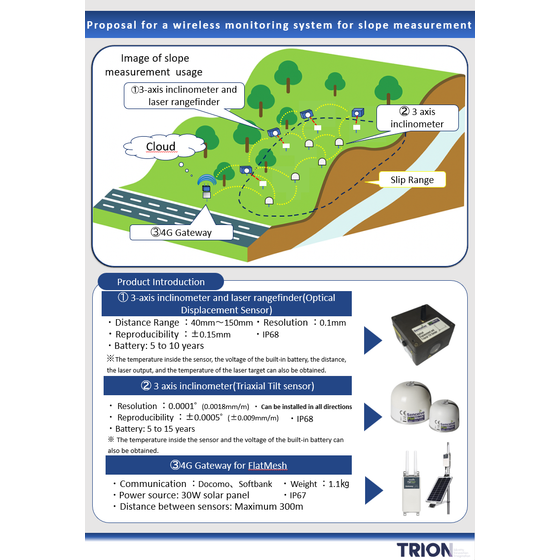

No power required! Completely wireless slope measurement is possible.
By utilizing this sensor, complete wireless slope measurement is possible. - The sensors communicate with each other (up to 300m), achieving complete cordless operation. - The 4G gateway is powered by solar panels. - Additionally, precise data acquisition is possible.
Inquire About This Product
basic information
- Laser distance meter with a built-in 3-axis inclinometer (ODS) - Resolution: 0.1 mm - Measurement range: 0.04 m to 150 m - Battery life: 5 to 10 years - For the 3-axis inclinometer, refer to the following TTS - IP68 - 3-axis inclinometer (TTS): - Resolution: 0.0001° (0.0018 mm/m) - Battery life: 5 to 15 years - IP68 - 4G gateway (4GGW): - Sends measurement data to the cloud - Communication: Docomo, SoftBank - Distance between sensors: up to 300 m - Power supply: Solar panel (30 W) - IP67
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
