Minimal tool interference and very little gripping area! High clamping force of 16kN (when tightened to 100Nm).

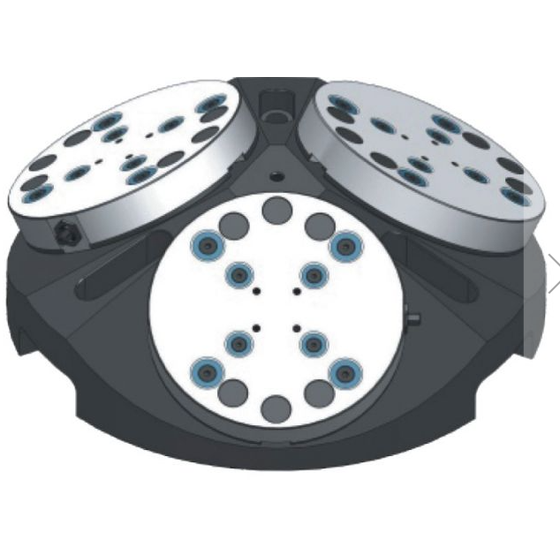

We would like to introduce the "Zero Point Three-Sided Pyramid" that we handle. It significantly reduces costs, enhances application flexibility, and improves safety in clamping. The Zero Point System is compatible with the Zero Point Systems from LANG and HWR. Additionally, it not only achieves strong holding power but also enables a double grid system that can accommodate both Grid 96 and Grid 52. 【Fastpoint Zero Point System】 - Reduced setup time, safe replacement - High-precision exchange and positioning in a short time - Work can be done with the same precision by anyone - Supports a variety of applications by exchanging modules - Mechanical type operated by screw tightening *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Lineup】 ■EQP9652-310 ■EQP9652-375 ■EQP9652-425 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
Line up（3）
| Model number | overview |
|---|---|
| EQP9652-310 | Size ø310×125mm, Inclination angle 40°, Weight 29.5kg |
| EQP9652-375 | Size ø375×115mm, Inclination angle 30°, Weight 36.2kg |
| EQP9652-425 | Size ø425×100mm, Inclination angle 20°, Weight 41.3kg |
News about this product（1）
