Lineup for output extension and output shaping of photomultiplier tubes!

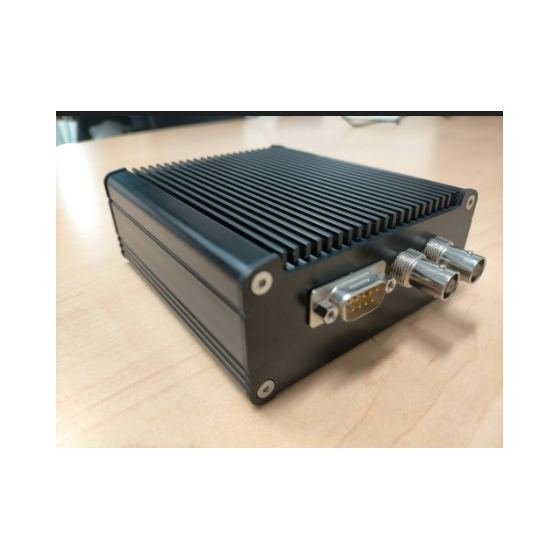

We would like to introduce the "Preamp for Photomultiplier Tubes" handled by ANSeeN Co., Ltd. We offer two models: "AMP01 (formerly AMP-BNC-01)" for output extension and "AMP03 (formerly AMP-BNC-03)" for output shaping. The gain specifications are as follows: "AMP01" has a gain of 10V/V@50Ω and 0.5mV/uA@50Ω, while "AMP03" has a gain of 10mV/pC@HiZ. 【AMP01 Main Specifications (Partial)】 ■ Gain: 10V/V@50Ω, 0.5mV/uA@50Ω ■ Rise Time: Less than 5ns ■ -3dB Bandwidth: 100MHz *For more details, please refer to the related links or feel free to contact us.
Inquire About This Product
basic information
【AMP03 Main Specifications (Partial)】 ■Circuit Configuration: Charge-sensitive Amplifier ■Gain: 10mV/pC@HiZ ■Integration Time Constant: 1ms (100pF//10MΩ) *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the related links or feel free to contact us.
Company information
ANSeeN Inc. aims to provide radiation detectors that vividly display the surrounding radiation in full color through outstanding technology, contributing to the safety of social infrastructure such as healthcare, security, and individual peace of mind. Additionally, we comprehensively support lean startups to commercialize innovative devices utilizing excellent human resources.
