oT-Record: Dynamic Brightness and High-Resolution Video Recording and Analysis System

last updated：Oct 23, 2026

Official site

A system capable of dynamically recording, viewing, and analyzing luminance distribution at high resolution and high frequency (such as luminance histograms and visualization of saturation).

oT-Record is a system that allows for the dynamic recording, viewing, and analysis of luminance distribution at high resolution and high frequency (such as luminance histograms and saturation visualization). By inputting data recorded with this system into HALDIS, it is possible to dynamically display the captured scene indoors with the same brightness as outdoors. ■ Dynamic luminance measurement of scenes or objects ■ Acquisition of a series of high-frequency, high-resolution images ■ Luminance analysis of recorded images 【Other Features】 ■ The included oT-Record software allows for viewing and analysis of the acquired luminance distribution data ■ Video playback is also possible ■ Changes in luminance are easy to visually confirm

Inquire About This Product

basic information

- Frame rate: 30 to 120 fps - Compact and lightweight - No power cable (battery operated) - Battery life: approximately 20 minutes - Data compression that does not compromise image quality - Instant data conversion - Advanced analysis features *For more details, please download the PDF or feel free to contact us.

Price range

Please contact us for details

Delivery Time

Please contact us for details

Applications/Examples of results

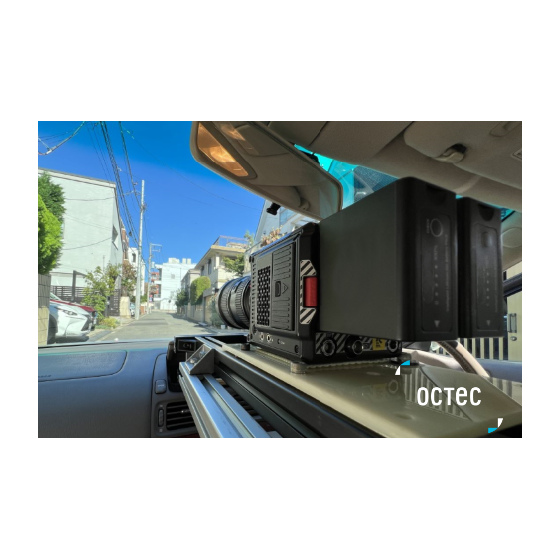

Usage examples: - Acquisition and analysis of dynamic brightness data in driving scenes - Verification of onboard cameras - Benchmarking of front and rear lamps - Benchmarking or verification of AHS/ADB Output data examples: - Images are clear, with no blur even at 90 km/h - Recorded values range from 30 to 150,000 cd/m² (range depends on camera settings) - Display of false colors and histograms from 200 to 50,000 cd/m² - Above 150,000 cd/m², pink becomes prominent (maximum 300,000 cd/m²)

Detailed information

oT-Record acquisition image Night scene
oT-Record (OT Record) Acquired Image ADB
oT-Record acquisition image fisheye lens
oT-Analyzer GUI screen
oT-Record Obtained Image and oT-Analyzer Analysis
