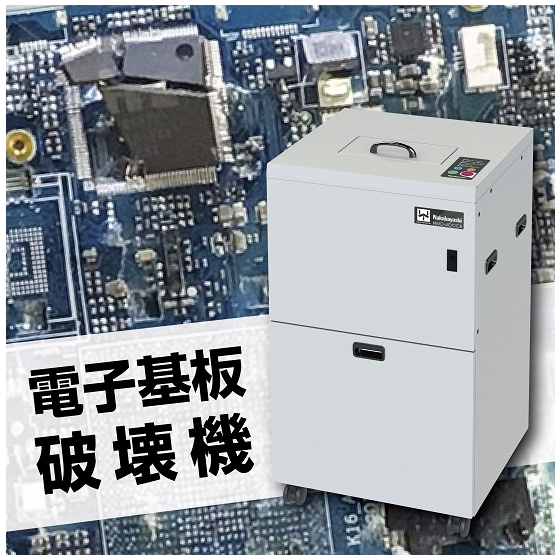

Electronic Circuit Board Destruction Machine NMD-400CB
Electronic Circuit Board Destruction Machine NMD-400CB
An electronic circuit board destruction machine specialized for the destruction of used tablet devices and PC memory.
This is an electronic circuit board destruction machine that can physically destroy media such as electronic circuit boards of tablet devices and PCs, SSDs (M.2), and USB memory. It crushes with an even finer pitch than our conventional products, ensuring complete destruction. In tablet devices and PCs deployed under the GIGA School Initiative, measures against information leakage and personal data breaches are required. By physically destroying data storage components, appropriate security measures can be taken during disposal. ■ For educational information security measures for used devices under the GIGA School Initiative! The special-shaped blade's two-axis rotation mechanism enables efficient physical destruction without attachments. It can destroy electronic circuit boards up to 200mm wide and 280mm long. ■ Continuous destruction capability It is possible to continuously feed items until the dust box is full, so there is no need to remove destroyed items after each destruction. ■ Consideration for safety The entrance door is equipped with a safety mechanism that locks when destruction starts, ensuring safety is taken into account.
Inquire About This Product
basic information
●Dimensions: W480×D455×H914.2mm (H includes handle) ●Inlet size: 200×100mm (supports lengths up to 280mm) ●Destruction method: Crushing destruction ●Weight: Approximately 83kg ●Destruction targets: Electronic circuit boards, SSDs (M.2), USB memory, etc. *For details on supported media, please contact us. ●Destruction time: Approximately 10 seconds per unit ●Power supply: AC100V 50/60Hz ●Motor rating: 400W ●Dust box capacity: Approximately 17 liters
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
