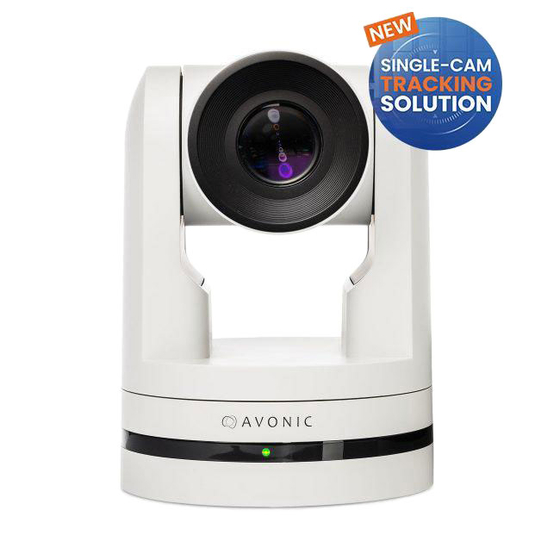

Pan-tilt-zoom camera_4K60Hz UltraHD (Demo unit available for loan!)
New Standard for 4K60Hz UltraHD PTZ Cameras Introducing the latest model from AVONIC, recognized in Europe for its high reliability and cost performance! Proven track record in large-scale conferences (NATO) in Europe. Supports 4K@60Hz with Sony CMOS sensor (HDR support) for excellent image quality even in low light and harsh lighting conditions. Models compatible with the latest version of the widely used industry-standard network protocol Dante AV-H*1, as well as NDI HX2 and NDI|HX3*2 versions are also available. ■ Innovative AI Tracking Solutions Offering three innovative tracking solutions (optional) utilizing advanced AI technology. Ideal for small to medium-sized classrooms and meetings, we provide single camera AI tracking, dual camera AI tracking using two cameras, and multi-camera AI tracking capable of connecting and controlling up to eight cameras.
Inquire About This Product
basic information
Optical Zoom Magnification: 30x (4K) 50x (Full HD) Horizontal Field of View: 59.2 HDMI Output (4K60) 3G-SDI Output (1080p60) USB2.0 Output (2160p30) USB2.0 Output (2160p30) PoE (IEEE802.3af) Compatible Serial Control Protocol VISCA, PELCO-P/D IP Control Protocol VISCA over IP IP Control Protocol Onvif Minimum Illumination: 0.05 LUX IP Streaming (H.264/265) Unicast TS mode High Bitrate streaming up to 40Mbit Long Frame RTP Streaming High-Speed PTZ mode (suitable for conferences) Balanced Audio Input (with delay adjustment) Unbalanced Audio Input Balanced Audio Input (with delay adjustment) Power Supply: 12V2A Power Consumption: 18W Operating Temperature: -5°C ~ 35°C Storage Temperature: -20°C ~ 60°C Size: 300 x 235 x 300 mm
Price information
Please contact us.
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Avonic is a camera manufacturer based in the Netherlands, and its cameras are highly regarded in Europe for their image quality, reliability, and price-performance ratio. Avonic's PTZ cameras are widely used in international conference venues, various educational settings, meetings, healthcare, video conferencing, worship, webcast studios, and broadcasting stations in the global market, and they have a strong track record.
Detailed information
-
■Innovative AI Tracking Solutions Three types of innovative tracking solutions utilizing advanced AI technology (optional). The single-camera AI tracking, which can be used with just the CM93 camera, is ideal for small to medium-sized classrooms and meetings. Dual-camera AI tracking is also available using two cameras. Furthermore, for large conference rooms, auditoriums, and concert halls, multi-camera AI tracking that can control up to eight cameras is optimal. Innovative AI tracking solutions provide a new tracking experience tailored to various spaces and applications.
-
■Single Camera AI Tracking The innovative single camera AI tracking solution utilizing advanced AI technology is a tracking feature that can be used with the CM93 camera alone, making it ideal for small to medium-sized classrooms and meetings. It automatically tracks the presenter's movements seamlessly and with exceptional accuracy.
-
■Dual Camera AI Tracking The dual camera AI tracking solution, which uses two cameras, is a versatile tracking solution applicable to various scenes. For example, it enables automatic switching between two cameras for video recording during lectures or presentations. It automatically locates the teacher in a room with both teachers and students, providing close-up footage of the teacher even in large lecture halls or auditoriums. The live video output can automatically switch between a wide view of the classroom and a close-up of the teacher.
-
■Multi-Camera AI Tracking The multi-camera AI tracking solution can connect and control up to eight cameras. The multi-shot AI software extends dual-camera tracking capabilities or functions as a standalone IP video switcher with additional intelligence. This system, which can intelligently switch between multiple cameras, is ideal for large conference rooms, university auditoriums, concert halls, and more.
Line up（11）
| Model number | overview |
|---|---|
| CM93-IP-B | 4K＠60 PTZ Camera 30x Zoom Black |
| CM93-IP-W | 4K＠60 PTZ Camera 30x Zoom White |
| CM93-NDI-B | 4K＠60 PTZ NDI Camera 30x Zoom Black |
| CM93-DAV-B | 4K＠60 PTZ DanteAV-H Camera 30x Zoom Black |
| CM93-NDI-W | 4K＠60 PTZ NDI Camera 30x Zoom White |
| CM93-DAV-W | 4K＠60 PTZ DanteAV-H Camera 30x Zoom White |
| LC90-1 | Single Camera Tracking License |
| CD-TRAC1 | CamDirector Teacher Tracker License |
| PTZ Camera Controller CON300-IP | Dedicated Controller with Joystick |
| PTZ Camera Controller CON100 | Dedicated Controller with Joystick |
| AV-CD500 AI Processing Unit | Controls up to 8 cameras via IP connection to the AI processing unit with Web UI for up to 8 CM93 cameras, allowing presetting and one-touch switching. |
