[For explosion-proof measures] Self-locking even during tilting inversion! Inline reduction gear.
No need for brake stoppers! It can hold the load while stopped and allows for work and experiments to be conducted at an angle. The input and output shafts are aligned in a straight line, achieving space-saving design!

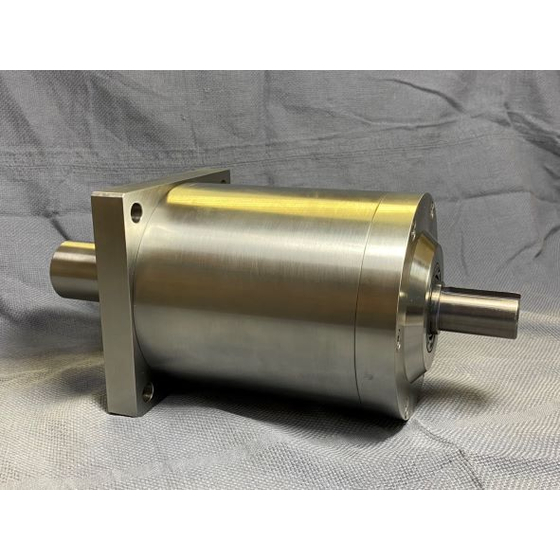

This is a compact inline reduction gear equipped with our company's self-locking mechanism (Shoji-Lock). For example, it can hold the load even if the movement is stopped during the ascent, rotation, or tilting of the device, making it suitable for requests such as wanting to conduct experiments or perform tasks at a stopped position. Another feature is that, unlike conventional worm reduction gears with self-locking functions that require a considerable amount of space due to the input and output shafts being orthogonal, our design has the input and output shafts aligned in a straight line (inline), allowing for a lightweight, smart, and compact design that can be easily integrated into various devices. The lineup can be selected based on output shaft torque and reduction ratios, with options available for output shaft torque ranging from 5 to 100 kgm (load × torque arm). Some products are also available in all stainless steel for cleanroom compatibility. The basic model is coated with black Teflon, which is resistant to rust. Additionally, it can operate and maintain load even without power during emergencies. It has been introduced as a mechanical element in various applications, including explosion-proof measures, defense and military-related fields, plant-related industries, semiconductor manufacturing equipment, automotive assembly lines, and device cover opening and closing.
Inquire About This Product
basic information
【Lineup】 SRM (Manual Only / Low Speed) Series Output Shaft Torque (Load × Torque Arm) Available for 5/6/12/25/50/100 kgm Several reduction ratios available for each model All stainless steel available No handle included SRE (Power Tool Assist / High Speed) Series Output Shaft Torque (Load × Torque Arm) Available for 3/6/12/25/50 kgm Several reduction ratios available for each model
Price information
-
Delivery Time
Applications/Examples of results
Space-saving can be achieved compared to worm gear reducers. Efficiency is also good. Many devices that want to maintain self-holding during operation, such as furnace elevation and door opening and closing, have been adopted. Used by semiconductor equipment manufacturers, automotive manufacturers (factories), plant manufacturers, and in the architecture and interior fields.
Detailed information
-
We have a lineup available. We offer various models based on output torque and reduction ratio. For more details, please check our website or catalog. The basic surface treatment features a black Teflon coating that is resistant to rust.
-
We also have stainless steel options available. It is possible to manufacture entirely in stainless steel for clean room compatibility.
Line up（3）
| Model number | overview |
|---|---|
| SRM-005-11SS | All stainless steel, compatible with clean rooms |
| SRM006~100 | Standard lineup for manual inline reducers compatible with 6, 12, 25, 50, and 100 kgm. Various reduction ratios are also available. Please refer to the catalog for details. |
| SRE003~050 | Standard lineup for electric inline reducers compatible with 3, 6, 12, 25, and 50 kgm. Various reduction ratios are also available. Please refer to the catalog for details. |
catalog（4）
Download All Catalogs
CAD data（10）
| Model number | overview | File |
|---|---|---|
| SRM-005-11 | Inline reducer Permissible rated holding torque 5 kgm, manual use only Reduction ratio i = 11 Stainless steel version also available |
|
| SRM-006 | Inline reduction gear Permissible rated holding torque 6 kgm for manual use (low-speed input shaft rotation type) |
|
| SRM-025 | Inline reduction gear Permissible rated holding torque 25 kg·m manual only (input shaft rotation low-speed type) |
|
| SRM-100 | Inline reduction gear Permissible rated holding torque 100 kg·m manual only (input shaft rotation low-speed type) |
|
| SRM-012 | Inline reducer Permissible rated holding torque 12 kgm Manual use (input shaft rotation low-speed type) |
|
| SRM-050 | Inline reduction gear Permissible rated holding torque 50 kgm Manual use only (input shaft rotation low-speed type) |
|
| SRE-006 | Inline reduction gear Permissible rated holding torque 6 kg·m, suitable for both electric and manual operation (high-speed input shaft rotation type) |
|
| SRE-012 | Inline reduction gear Permissible rated holding torque 12 kg·m, suitable for both electric and manual operation (high-speed input shaft rotation type) |
|
| SRE-050 | Inline reduction gear Permissible rated holding torque 50 kg·m, suitable for both electric and manual operation (high-speed input shaft rotation type) |
|
| SRE-025 | Inline reducer Allowable rated holding torque 25 kgm Electric and manual dual-use (high-speed input shaft rotation type) |
|
Company information
The load-holding function equipped reduction mechanism (shoji-lock) has been developing applied products such as winches and rack jacks since the early 2000s. Steady sales activities have borne fruit, and it has begun to be adopted for various applications. Unlike conventional worm reduction gears with self-locking functions where the input and output shafts are orthogonal, this mechanism has them aligned in a straight line (inline), allowing for a compact design and space-saving, which has received high praise, resulting in a diverse range of practical examples. (Patents have been obtained in Japan, the United States, the EU (Germany, France, the UK), China, South Korea, and Taiwan.) Furthermore, starting in April 2023, we launched a new business for overseas parts procurement, beginning with Vietnam. Currently, a majority of our parts are also procured overseas, and we hope to leverage our achievements and network to assist companies struggling with cost reduction in parts procurement.
