Amazing performance: Covers the required area of two existing units with just one unit.

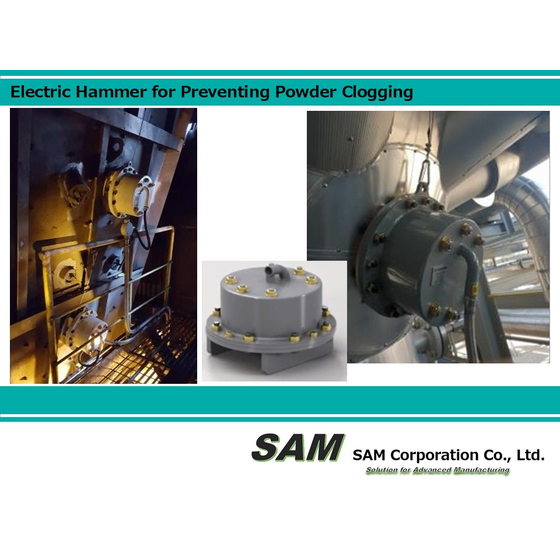

Electronic Hammer for Preventing Powder Clogging in Large Silos Effectively guides the flow of powder with vibrations (60 times per second) for various powder forms. With patented vibration technology, it prevents damage to silos while transmitting vibrations over a wide area in a short time. ■ Cleaning Method that Transmits Vibrations over a Stable Wide Range - Electromagnetic Method: No utilities other than electricity (compressed air) are required, propagating vibrations over a wide area. ■ Strong Durability - Completely Sealed Structure: Provides dustproof, waterproof, and explosion-proof effects. - High Durability: Designed for high durability, ensuring stable performance even in harsh operating environments. - Equipped with protective circuit for the control panel. ■ Improved Operational Efficiency - Smooth supply of raw materials enables increased operational rates, allowing management of a wide area with fewer personnel. - Diverse Operation Methods: Both on-site control and remote control are possible. - Flexible Control: Adjust impact force, impact duration, and pause time with volume control. - Actual operating current is below 2A, providing excellent energy-saving effects. ■ Flexible System - Easy installation, compatible with factory automation systems. Supports various capacity selections and different power sources.
Inquire About This Product
basic information
◇Main Material: Steel ◆Control Panel - Size: W500 x H600 x D300 (SUS304 / Only Case) - Main Power: 1ph 1W 220V (50/60Hz), 110V, 380V, 440V applicable for any of these. - Control Frequency: 20~60Hz - Built-in Driver (Number of Hammers that can be connected per Driver: 2 sets) ◇Electronic Hammer - Operating Method: SPWM - Vibration Acceleration: 100 m/sec² or more - Size: D350 x H251 (excluding handle, Steel) - Weight (including Fixing Pad): 43.4kg - For detailed information, refer to the catalog ◆Applicable Equipment: Powder Equipment ◇Various Certifications Obtained in South Korea and Abroad - South Korean Certifications: Pressure-resistant explosion-proof, explosion-proof, dust explosion-proof - Overseas Explosion-proof Certification: IECEx, European Explosion-proof Certification: ATEX (CE) - ISO9001:2015 Certification
Price range
Delivery Time
※Sam Corporation is the sole authorized dealer in Japan. *Process after downloading materials* Please note that individual inquiries (such as requests for quotes or specification confirmations) are not automatically processed. We apologize for the inconvenience, but please contact us directly. (We welcome phone inquiries: 045-313-5181)
Applications/Examples of results
Korea's largest steel manufacturer, a subsidiary of a Korean automobile manufacturer, and Korea's largest comprehensive chemical manufacturer, among others, have over 5,000 usage records (based on hammer standards) across more than 100 companies that require various powder management in steel mills, power plants, secondary batteries, petrochemicals, etc. <Stepping into a new era in the vibrator industry. Electronic Hammer! 1) Solves problems occurring in raw material transfer equipment such as hoppers, silos, chutes, and piping. - Issues like bridging, arching, funneling, and rat holing. 2) Instantly generates impact and vibration simultaneously, transmitting powerful force to the equipment. 3) Enables powerful and effective vibrations that utilize resonance with the equipment, transmitting as far as possible. - Wide effective range: radius of 2-4m. 4) Drive method that minimizes fatigue failure of the equipment. - No history of equipment damage since product development in 2014!! 5) Allows for fine adjustments as desired by the user, including strength modulation, operation, and intervals. 6) Remote operation is possible with a remote control method.
Detailed information
-
Even slight physical impacts generate widespread vibrations, preventing clogging in pipes, silos, and hoppers. We have a proven track record of supplying to companies requiring powder management, including steel mills, power plants, secondary battery manufacturers, steelmakers, chemical manufacturers, and petrochemical companies.
