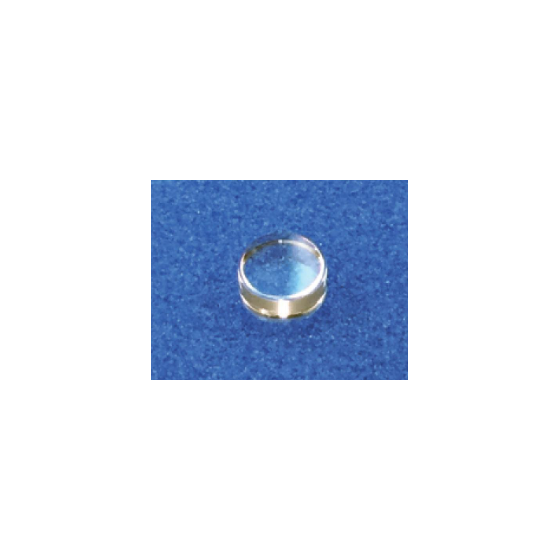

It is a high-precision top-hat beam shaper that is not limited to specific wavelengths, thanks to its smooth aspheric lens.
The top hat beam shaper from Ayase utilizes diffraction of light to convert Gaussian beams into top hats (uniform intensity distribution), similar to conventional DOE methods, but it possesses excellent features that set it apart from DOE methods. These can be considered innovative top hat beam shapers that address the shortcomings of traditional DOE methods. *【Multi-wavelength compatibility】One element can accommodate a wide range of wavelengths. *【High precision】No false spots, improving light irradiation and measurement accuracy. *【High efficiency】High theoretical efficiency and improved performance stability. *Can convert to line, square, or circular light beams. μLINEMAN (LBS) .... Line with uniform illuminance. μSQUAREMAN (MBS) .. Square with uniform illuminance. These are formed at the desired focal position. μLINEMAN and μSQUAREMAN can also accommodate multiple light sources, leveraging the aforementioned features. Additionally, customization is possible for changing the size of lines or squares, converting to circular or rectangular shapes, or transforming into intensity distributions other than top hats.
Inquire About This Product
basic information
Please feel free to contact us for custom requests.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
Industrial machinery: Laser processing, marking, deburring, etc. Medical field: Biomedical, cell inspection, flow cytometry, etc. Measuring instruments: 3D measurement, non-contact measurement, foot shape measuring instruments. * For other inquiries, please feel free to contact us.
Line up（3）
| Model number | overview |
|---|---|
| LINEMAN | |
| μ-LINEMAN | |
| μ-SQUARE MAN |
Company information
【Addressing These Concerns and Uses】 - I want to shape a Gaussian beam into a uniform top-hat profile. - I want to equalize and shape the intensity distribution of laser light. - Existing beam shapers do not meet the specifications. - I want to achieve uniform irradiation for laser processing and LLO. - I want to use lasers for inspection, measurement, 3D measurement, and machine vision. - I want to customize the optical system according to wavelength, beam diameter, working distance, etc. 【Ayase's Top-Hat Beam Shaper Technology】 This is an optical component and optical module that shapes Gaussian-distributed laser light into a top-hat profile suited for specific applications, equalizing the light intensity distribution in the irradiation area. We also accommodate the consideration and customization of optical systems according to usage conditions such as wavelength, incident beam diameter, output shape, working distance, and required uniformity. 【For More Information】 Ayase Web Page - View Top-Hat Beam Shaper Technology → Technology Page - View Applications → Application Page - View Top-Hat Beam Shaper Products → Product Page - For Custom Optics and Technical Inquiries → Custom/Inquiries Please feel free to consult us from the stage where specifications are not yet determined, as well as regarding the application of our optical systems.
