Tohoku Univ. Technology：Swelling followed by ball-milling for waste wire-harness recycling：T19-082_T19-440
Highly efficient and accurate separation of copper wires and PVC coating

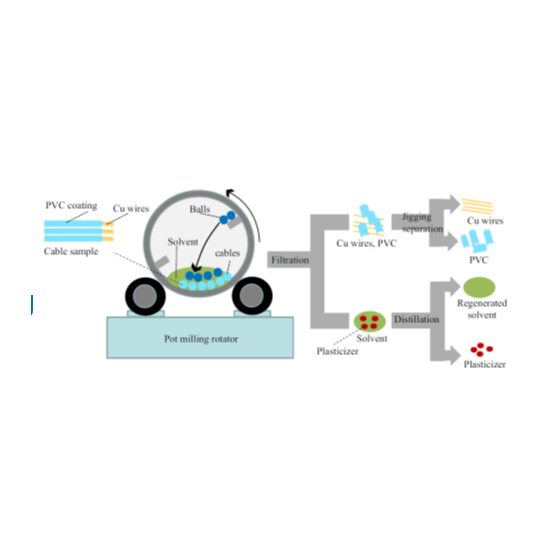

Wire harnesses (WHs), the main target of this technology, are mainly used in automobiles and consist of bundles of thin wires that connect each component and are responsible for transmitting electrical signals and supplying power. Increased demand is expected with the rapid growth of electric vehicles in the future, and the development of efficient recycling technology for used WHs is strongly desired. To secure domestic resources and realize a decarbonized society, it is vital to recycle not only metal wires but also plastic coating materials. Chopping or comminution treatment is a common separation technology for treating used WHs, while it has limitations for mechanically recycling recovered plastic coating because it contains fine copper particles that are impurities for recycling. This invention enables the separation, sorting,and simultaneous recovery of copper wires and polyvinyl chloride (PVC) coating without the formation of fine particles by applying moderate impact in the ball mill equipment after swelling the coating material with organic solvent.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
