High power generation efficiency due to increased inflow wind speed (World No. 1)
● "Lens Wind Turbine" Here are the key points! (1) High power generation efficiency due to increased inflow wind speed (World No.1) (2) Reduction of noise generated by tip vortices (Effect of the round ring) (3) Improved aesthetics due to the round ring of the lens ● High Efficiency Power Generation The flared diffuser draws in wind due to its low-pressure area. The accelerated wind is increased by about 1.5 times at the blade tips, causing the turbine to rotate. Since wind energy is proportional to the cube of wind speed, a wind turbine with the same rotor diameter can achieve about 2 to 3 times the power output. ● Quietness The tip vortices generated at the blade tips and the opposing vortices induced by the inner wall of the diffuser cancel each other out as they move downstream, suppressing the tip vortices that are the source of aerodynamic noise, resulting in a significant reduction in noise. Noise measurements for a 3kW machine recorded sound pressure levels below 55dB near the turbine at wind speeds of 5 to 14 m/s. Noise is not a concern even in quiet residential areas. ● Aesthetics Unlike conventional wind turbines with pointed blades that rotate at high speeds, the soft image created by the "ring" of the diffuser surrounding the blades does not detract from the landscape and has a characteristic of blending easily with the surrounding scenery.
Inquire About This Product
basic information
● Wind Turbine "Lens Windmill" Model: RW1K-JA-04 (Basic Unit) - Rated Output (Rated Wind Speed): 1.0 kW (11 m/s) - Rotor Diameter: 1.48 m - Collector Lens Outer Diameter: 1.96 m - Diffuser (Collector Lens): Cii Type, Flange 7.5% Height - Wind Turbine System Center Height*: 12 m - Collector Lens Top Height*: 13.0 m - Wind Turbine Body Weight: 150 kg - Wind Turbine Type: With Collector Body, Horizontal Axis, Downwind - Blades: 3 Blades, Fixed Pitch, CFRP - Generator: Coreless Multi-pole Synchronous Generator, Outer Rotor (Rated Speed 550 rpm) - Yaw System: Passive - Brake: Short-circuit Brake - Manual Stop: Possible (Lever Switch) - Cut-in Wind Speed: 3 m/s - Cut-out Wind Speed: 20 m/s - Wind Resistance: 52.5 m/s (Class III) - Grid Connection: Possible - Independent Power Supply**: 24 - 48 VDC - Tower: Standard: Steel Pipe Monopole (Option: Tiltable Pole) Manufactured by Liam Wind Co.
Price information
Please feel free to contact us.
Delivery Time
※Please let us know your delivery date.
Applications/Examples of results
Nagano Prefecture JAXA Misasa Deep Space Exploration Ground Station Hibiki Small Wind Turbine Certification Testing Site, Kitakyushu City Murata Manufacturing Co., Ltd., Toyama City Oniizuka Electric Works, Oita City, Oita Prefecture Chiname Town, Okinoerabu Island, Kagoshima Prefecture Fukuoka South Cleaning Plant NEDO Venture Support Project Provincial Electricity Authority (PEA), Thailand
Detailed information
-

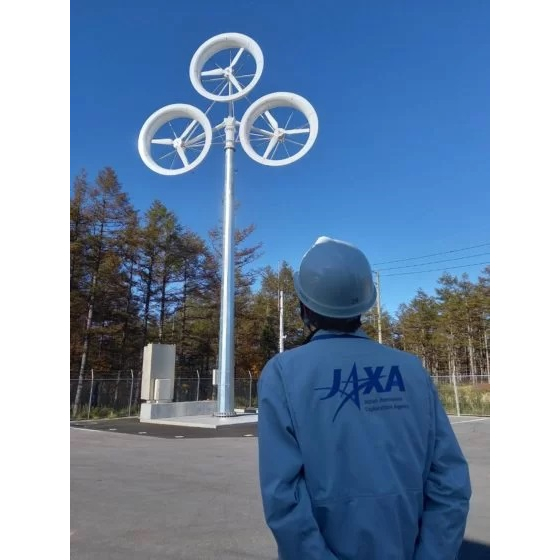

Nagano Prefecture JAXA Misasa Deep Space Exploration Ground Station
-
Murata Manufacturing Co., Ltd., Toyama City
-
Chinen Town, Okinoerabu Island, Kagoshima Prefecture
-
1kW lens wind turbine + with streetlight
-
There are foundation methods and pile methods for installation.
Line up（2）
| Model number | overview |
|---|---|
| RW1K-JA-04 (Basic Unit) | Rated output (rated wind speed): 1.0 kW (11 m/s) |
| RW3K-JA-04 | Rated output (rated wind speed): 3.0 kW (11 m/s) |
