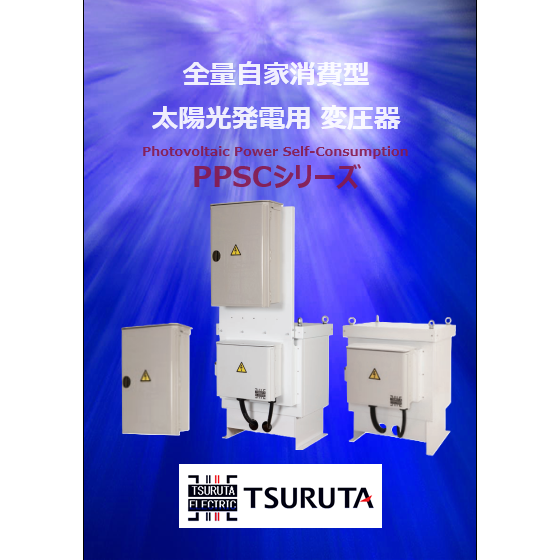

Transformer for Solar Power Generation System Full Self-Consumption Type PPSCⓇ Series
PPSC® Series (PPSC is a registered trademark of Tsuruta Electric Co., Ltd.)
System construction tailored to each manufacturer's PCS (power conditioner). Simplifying installation work through the integration of transformers, protective devices, and control devices.
The transformer developed for the purpose of complete self-consumption of solar power, the PPSCⓇ series (Photovoltaic Power Self-Consumption), protects the power generation equipment by completely isolating the power conditioner (PCS) from the grid and power supply, improves power generation efficiency, and prevents the challenge of reverse flow, which is crucial for effectively utilizing solar energy, through real-time tracking control. The "PPSCⓇ transformer," with lightning surge protection and low standby power performance, simplifies equipment installation by integrating "protection devices" and "control devices" as a system. It allows for flexible combinations into high-capacity self-consumption systems according to installation space and purpose, and is also capable of handling harsh installation conditions such as salt damage. By constructing systems tailored to the characteristics and specifications of each power conditioner (PCS) manufacturer, it enables the appropriate equipping of power generation facilities. Additionally, it can accommodate the "RS series," which features integration of the transformer housing and power conditioner on a dedicated frame, resulting in space-saving, reduced construction time, and significant cost reductions. Please consult us according to your installation environment.
Inquire About This Product
basic information
This is a solar power transformer designed for full self-consumption, effectively utilizing solar energy without waste and protecting power generation equipment. ■ Real-time tracking control constantly detects load and power generation ■ Prevention of leakage current through the function of an isolation transformer ■ Adoption of a unique complete insulation method ■ Reverse current prevention function ■ Voltage conversion (converts output voltage of power conditioners and PCS to 210V) ■ Lightning surge protection function ■ High efficiency and low standby power ■ Compatible with decentralized system construction ■ Simplification of installation work through integration of "transformer" + "protection device" + "control device" ■ Compliance with fire prevention regulations (FR® series) ■ Specification for salt and heavy salt resistance available ■ On-site survey estimates ■ On-site PPA model compatibility available
Price information
We will inquire about the following to provide a quote based on your installation environment: 1. Transformer capacity 2. Planned connection to the power conditioner 3. Type of breaker: primary (grid side), secondary (PCS side) 4. Options: PCS mounting frame / salt-resistant specifications / fire prevention regulation compliant products Please feel free to contact us. ■order@tsuruta-electric.co.jp ■Head Office Sales & Technical: 0280-92-5225
Delivery Time
※Please feel free to consult with us.
Applications/Examples of results
As an engineering solution for energy, we propose appropriate solutions from the perspective of safety and reliability, backed by rich experience in the manufacturing and installation of over 10,000 power transformer systems. ■ Engineering provision for transformers (voltage converters) for full self-consumption PV solar power generation systems, transformer systems, and switchboards for storage batteries. = Product Lineup = ■ Transformer PPSCⓇ series for full self-consumption solar power generation systems ■ RS series ■ Insulated transformers for solar power generation SPI series ■ Fire prevention regulation compliant products FR series ■ Switchboards exclusively for industrial storage battery systems OFGSⓇ series ■ SCOTT transformers (dry-type Scott transformers) exclusively for storage battery systems series ■ POWER BOX = Applications = ◇ BCP measures for disasters ◇ Reduction of electricity costs for self-consumed power ◇ Achieving storage parity through reduced running costs by using storage batteries ◇ Corporate CSR: Aiming for 100% renewable energy for the electricity used in business and CO2 reduction.
catalog（3）
Download All Catalogs
News about this product（1）
Company information
At our domestic factory certified with international standard specifications, we conduct consistent in-house production from the development, manufacturing, inspection, certification, to shipping of transformers. We manufacture transformers for various applications, including medical equipment, semiconductor manufacturing devices, and machine tools, as well as transformers for self-consumption solar power generation, solar power generation systems, and off-grid switchboards for industrial battery systems, providing solutions for safe electricity supply across a wide range of fields. With over 50 years of cultivated technology and know-how, we offer transformer manufacturing and optimal power receiving/power supply systems, as well as energy solutions. We optimize and manufacture transformer products for a wide range of applications and specifications, including machinery, equipment, systems, and various plants, and we provide transformer systems for renewable energy/solar power generation systems with over 10,000 units manufactured and installed. We propose appropriate problem-solving methods, taking into account installation and construction challenges and environmental conditions, with a focus on safety and reliability. In battery systems, we deliver optimal solutions for efficiently utilizing solar power generation.
