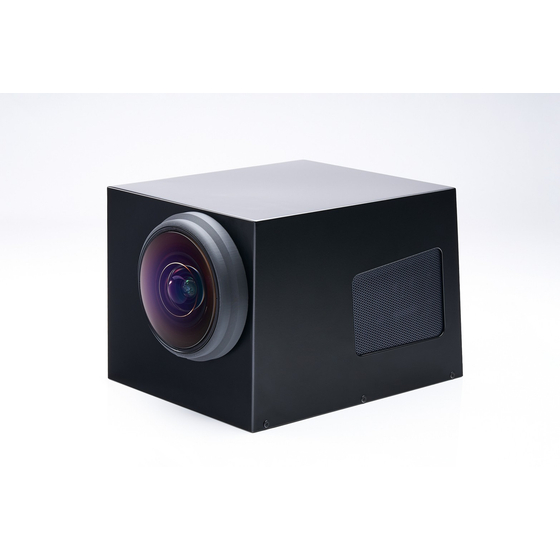

Achieve an immersive virtual reality space without VR goggles!
It can instantly create a powerful virtual reality space and provide an environment where you can experience overwhelming realism. In addition to the immersive experience of 360-degree videos, it enables realistic simulations such as flight simulators and driving simulators. ■ All-in-one design with built-in amplifier and speakers Traditionally, large-scale equipment such as multiple projectors and external speakers were required, but PANORA360 has built-in amplifiers and speakers, allowing for an immersive experience with just one unit. ■ Space design tailored to the projection environment In a "dark space based on white or gray," a single PANORA360 can transform the area into a powerful virtual reality space. ■ Immersive projection function that envelops the entire room By equipping an ultra-wide-angle special lens, it achieves panoramic images that set it apart from conventional projectors. ■ Compact and excellent installation versatility Its compact and lightweight design allows for not only floor placement but also ceiling mounting and shelf placement.
Inquire About This Product
basic information
【Basic Specifications】 ■Model: IPS-P1 ■Resolution: 3840×2160 ■Brightness: 3200 ANSI lumens *1 ■Light Source: Laser ■Expected Lifespan: 30000h *2 ■Audio: Speaker 10W×2 【Input & Expansion Ports】 ■Power Input: DC×1 ■USB Ports: USB2.0×2 ■HDMI Ports: HDMI Input×2 ■LAN Port: 1 ■Analog Audio Port: Headphone Output Φ3.5×1 ■Digital Audio Port: S/PDIF Optical Output×1 【Others】 ■Power Supply (AC Adapter Input): AC100V 50/60Hz ■Power Consumption: 150W ■Size: 360×251×222 mm ■Weight: 13.5 kg *1 Due to the special lens, it is impossible to measure the entire product, so these values are for the internal video engine. *2 This is a theoretical value when used at the minimum brightness setting. 【Youtube Video URL】 https://youtu.be/Qd6C8Wf2XeU
Price information
Please contact us.
Delivery Time
Applications/Examples of results
【Uses】 - Virtual aquarium - Flight simulator - Driving simulator - Racing game - Sports game - E-SPORTS - Golf simulator *For more details, please contact us.
Detailed information
-
The high-resolution images of PANORA360 create an illusion as if you are underwater.
-
【Projection Image】 Panora360 allows for ultra-wide projection with just one unit, enabling an immersive experience without VR goggles.
-
Base with angle adjustment function (optional item) 【IPS-BASE】 Easily adjustable angle when installed on the floor. Convenient for mobile use. Size: External dimensions/W345×D340×H135mm Weight: Approximately 2.1kg
-
Carrying Case (Optional Item) 【IPS-CASE-A】Storage for the main unit only 【IPS-CASE-B】Storage with the base equipped with angle adjustment function Convenient for transportation with casters and an extendable handle. Size: External dimensions/W420×D340×H625mm Weight: Approximately 7kg
-
Image correction device (optional) 【IPS-VEDB1】 Capable of correcting image distortion. Supports 4K video. Size: External dimensions/W303×D156×H40mm Weight: Approximately 1.2kg
