Device for a community broadcasting system that allows easy information dissemination in small communities in response to increased waves.

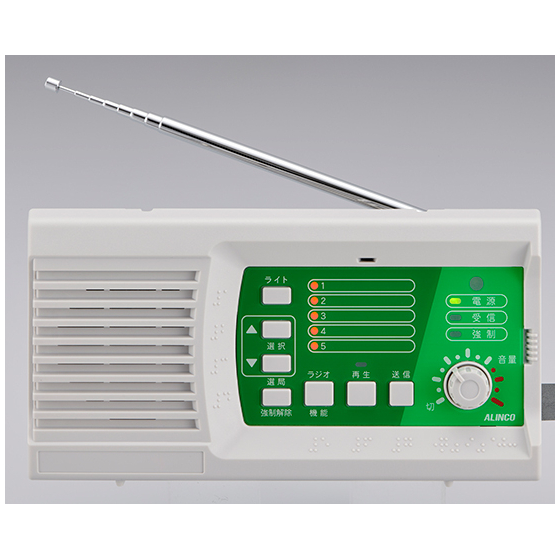

We propose a solution! It will lead to improved operational efficiency! The XEAL30DE is a receiver and specific low-power wireless transceiver that receives individual broadcasts using a digital simple radio (registered station) as a microphone. It supports an increase from 35 channels to 97 channels. *30 terrestrial channels (3R) + 5 aerial channels (3S) + 52 additional terrestrial channels (3T) + 10 aerial channels (3U) It allows for easy information dissemination in small communities such as neighborhood associations, local councils, companies, and factories. In environments with loud background noise, such as kitchens, offices, and factories, the sound from handheld devices may be too quiet to hear, and digital simple handheld devices lack external power terminals, making continuous reception difficult... In such scenarios, it can also be used as a monitor that receives sound at high volume with a large speaker and 1W output. While conventional individual receivers are expensive and complicated to install, this model is reasonably priced and easy to set up.
Inquire About This Product
basic information
Accessories: Wall mounting plate (with screws), AC adapter Dimensions: Width 220 × Height 112 × Depth 60 mm (excluding protrusions) Weight: Approximately 630 g (including batteries) Dust and water resistance rating: -
Price range
Delivery Time
Applications/Examples of results
Usage: High-volume speakers in kitchens, broadcasting equipment in factories, emergency communication within facilities Examples of achievements: Factories, logistics warehouses, transportation industry, restaurants, offices, etc.
Detailed information
-
【Equipment Required for Household Broadcasting System】 《For neighborhood associations and small local governments, low-rise and mid-rise buildings (Broadcast Area: Approximately 2 km radius)》 - Portable digital simple radio (registered station) as the transmitter - Required number of household receivers - AC outlet for connecting AC adapters and chargers - Speaker microphone for the radio (compatible with the digital simple radio being used) 《For wider area coverage, vehicle-mounted equipment》 - Vehicle-mounted digital simple radio (registered station) as the transmitter - Antenna and mounting hardware for transmission (Broadcast area varies depending on the type of antenna and installation height.) - Required number of household receivers - AC outlet for connecting AC adapters and chargers - (If used as a base station) DC stabilized power supply compatible with the digital simple radio being used
-
[Sold separately] Speaker Microphone EMS-62Y This microphone is convenient for use as a base station for specific low-power transceivers. It features a 1-axis 4-pole microphone plug and is IP54 rated for dust and water resistance.
