Water disaster prevention reinforced plastic underground storage-infiltration tank "AQUABOX"
AQUABOX

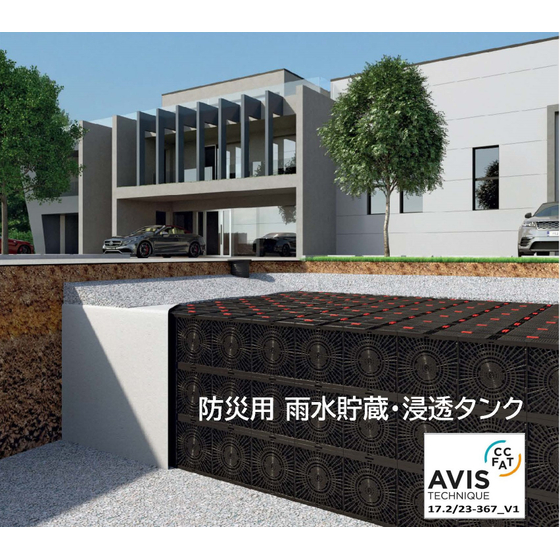

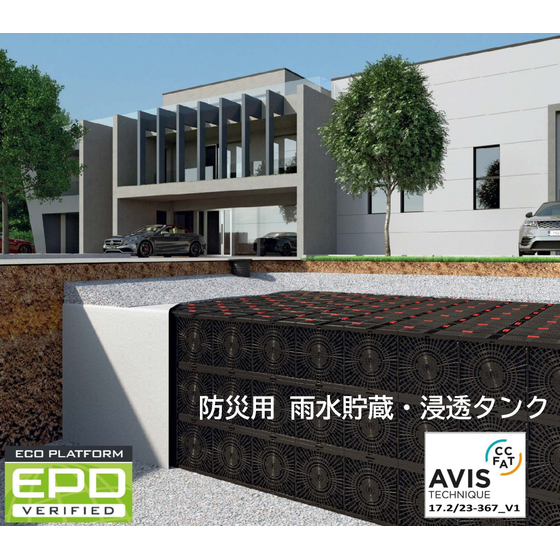

A rainwater system for storage, infiltration, and recharge facilities that excels in load-bearing performance and can be installed in industrial and commercial areas with heavy vehicle traffic.
It is a modular underground water storage unit made of polypropylene graphene, designed as a permeable water tank and a reservoir for resource recycling. The module is a rectangular prism measuring 75x75x80 cm in height, and they can be stacked, allowing for a maximum depth of 6.3 meters. It is suitable for water storage, storage, and permeable water tanks, with a single module capable of holding 432 liters. The system consists of side wall grids, a top cover, joints, and a manhole. 【Features】 ■ Utilizes an integrated fixing system and high-strength connectors, providing robustness and rigidity. It is designed to support heavy loads for SLW60/HGV* class large vehicles, making it suitable for installation under roads and parking lots. * Schwerlastwagen (German: large truck), Heavy Goods Vehicle with a total weight of 60t, compliant with the old DIN1072 standard. ■ Capable of storing rainwater equivalent to 96% of its volume. ■ Allows for inspection, regular maintenance, and cleaning operations. Patent registered and published. European Patent Registration EP4165255C0 US Patent Publication US20230220658A1
Inquire About This Product
basic information
a. Short-term compression vertical and lateral strength certificate by a certification body in accordance with UNI EN 17150:2019-1 b. Fatigue strength resistance of 1.67E6 cycles at a load range of 20-100 kN/m2 certified by RINA Cert (in accordance with RSTO 12 load class Bk1.8) c. Long-term durability certificate in accordance with CIRIA 737 d. 50-year warranty certificate in accordance with CIRIA 737 e. The structural design, backfill, and installation requirements shall ensure that the loads and load factors specified in Chapter 3 of the AASHTO LRFD Bridge Design Specifications are met f. Technically qualified by CCFAT (Commission Chargée de Formuler des Avis Techniques) of CSTB, a member of UEAtc (Union Européenne pour l'Agrément Technique dans la Construction), which is responsible for new technologies and new construction methods in Europe. *For more details, please refer to the PDF document or contact us.
Price information
Prices vary depending on quantity and type. Please feel free to contact us.
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
【Purpose】 ■Water storage tank for permeation tanks and water reuse *For more details, please refer to the PDF document or feel free to contact us.
Detailed information
-
2-layer Aquabox
catalog（1）
Download All Catalogs
Company information
Geoplast is a leading company in Northern Italy that specializes in advanced reinforced plastic concrete formwork and polymer compound products for the construction industry. In Japan, the official distributor Tsukamoto Agency serves as the point of contact for Geoplast.
