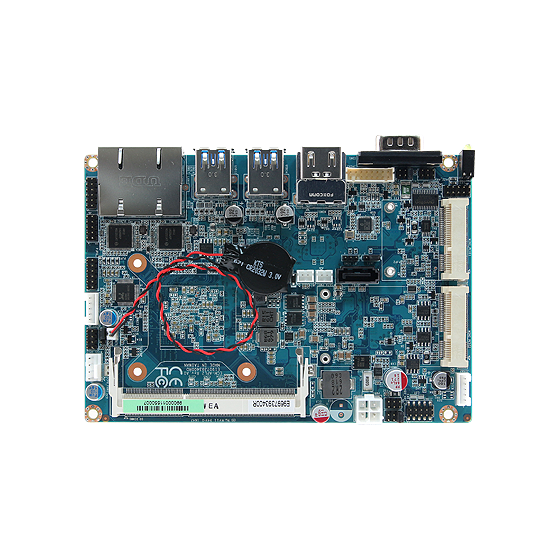

Intel Apollo Lake series equipped low power 3.5-inch embedded board (CPU bottom mounted)
The ECM-APL2-A is a 3.5-inch single board computer equipped with an Intel Pentium/Celeron/Atom BGA processor (CPU bottom mounted). It offers sufficient performance while consuming low power and is equipped with abundant I/O options, including HDMI x2, USB3.0 x4, and LAN x2. Additionally, it supports triple display output with HDMI x2 + VGA, and the compatible input voltage ranges from +12V to +24V, making it suitable for various industrial applications, including kiosks and digital signage.
Inquire About This Product
basic information
■Product Overview - Onboard Intel Pentium/Celeron/Atom SoC BGA Apollo Lake processor (CPU bottom mounted) - 1 x 204-pin DDR3L SODIMM socket, up to 8GB 1866MT SDRAM (Non-ECC) - Triple display simultaneous output (HDMI x2, VGA) - SATA III x1, mini PCIe x2, USB 3.0 x4, USB 2.0 x4, COM x2, 8-bit GPIO - Fanless operation - Input voltage +12V~+24V
Price range
Delivery Time
Applications/Examples of results
- AIO/Compact System - Thin Client - POS - Digital Signage - Retail System - Kiosk and so on
