High TMR, high sensor sensitivity and cost reduction can be realized using FeSiAl alloy. Low HK can be obtained for FeSiAl films with wide composition range.

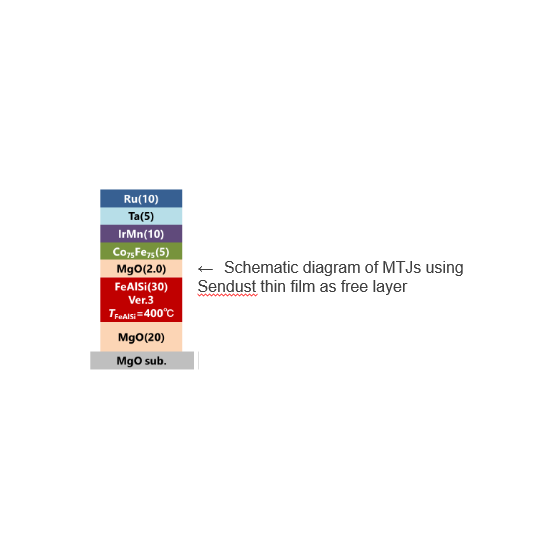

TMR sensor is known to be a high sensitivity magnetic sensor which uses the tunnel magnetoresistance effect (TMR) in magnetic tunnel junctions (MTJs). The TMR sensor performance can be controlled by controlling the magnetic anisotropy (HK) of the free layer. Therefore, it is expected to be applied to the bio-magnetic measurement device that detects the weak magnetic field of a living body at room temperature, the battery level detector for electric vehicle, non-destructive inspection to detect the rupture or deterioration of reinforcing steel bar in concrete structure, etc. NiFe alloy, CoFeB alloy and CoFeSiB alloys have been conventionally developed as free layer of MTJ devices for TMR sensor, but higher sensitivity and lower cost are required. This invention focused on FeSiAl alloy (Sendust) to produce the Sendust thin film of nanometer order thickness which was not able to fabricate. Therefore, this alloy is applied to the free layer to fabricate the MTJ devices that achieve the same level of sensor sensitivity as NiFe alloy, etc. It has been also revealed that the soft magnetic property is excellent over a wider range of composition compared with conventional Sendust.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
