Smartly conduct various tests with connection to the measuring device! Simulation of EV charger operation is possible.

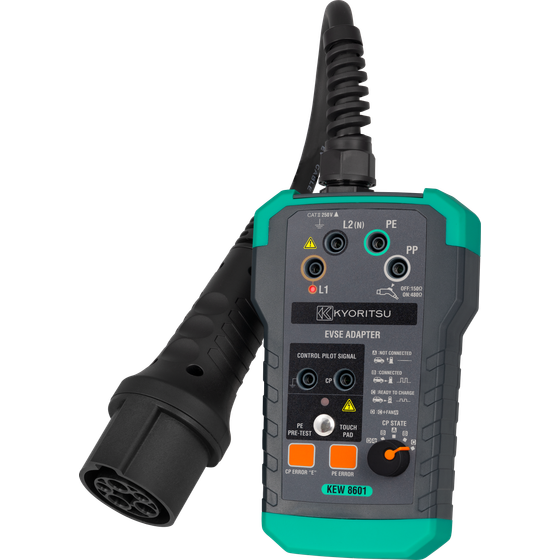

The "KEW 8601" is a test adapter that simplifies the operation check of EV ordinary chargers (EVSE). By connecting a tester to the measurement terminals, it is possible to easily conduct electrical tests of the charger while the vehicle is connected. It is equipped with a CP signal output terminal that allows signal analysis using an oscilloscope or similar device. Please feel free to contact us if you have any requests. 【Features】 ■ When a measuring device is connected, voltage measurement, insulation resistance measurement, and grounding resistance measurement are possible. ■ Voltage output can also be confirmed with a live wire LED. ■ By connecting an oscilloscope or similar device, analysis of the CP signal (control signal) is possible. ■ It is easy to check whether the charger stops charging in an error state. ■ By switching the switch, it simulates the state where the vehicle is connected to the charger. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■ Charging Plug: SAE J1772/IEC 62196-2 type 1 ■ Rated Voltage: Maximum AC 250V ■ Rated Frequency: 50/60Hz ■ Operating Temperature and Humidity Range: 0 to 40ºC, relative humidity 80% or less (no condensation) ■ Storage Temperature and Humidity Range: -10 to 50ºC, relative humidity 80% or less (no condensation) ■ Compliance Standards ・IEC 61010-1, IEC 61010-2-030 CAT II 250V ・IEC 60529 (IP40) ■ Operating Environment: Below 2000m altitude *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
