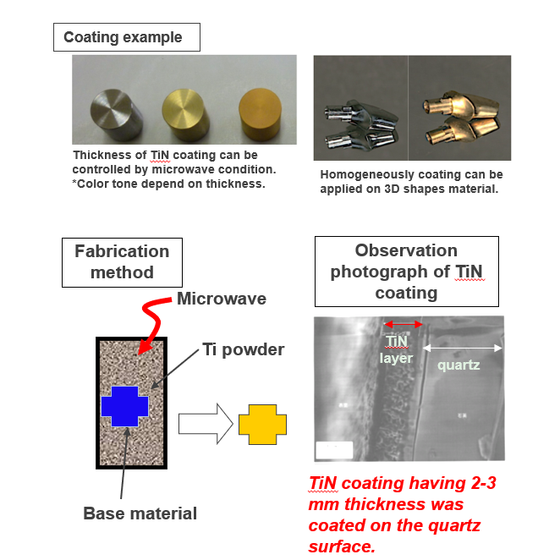

Titanium nitride coating can be produced in a short time in the atmosphere by microwave irradiation
In conventional titanium nitride coating, sputtering method, a method in which titanium ions and nitrogen gas ions are irradiated on a substrate, and a plasma CVD method are known. Compared with these methods, the present invention uses nitrogen in air as a nitrogen source and does not require vacuum process. Therefore, the coating of titanium nitride can be performed at a low cost by a simple process, sliding property heat resistance and hardness can be easily added. The same effect can be obtained for ceramics as well as metals. In addition to titanium, nitrides such as chromium and manganese can be produced as coating materials.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
