Supports high-speed processes! Maximum frame rate of 1kHz and line scan functionality.

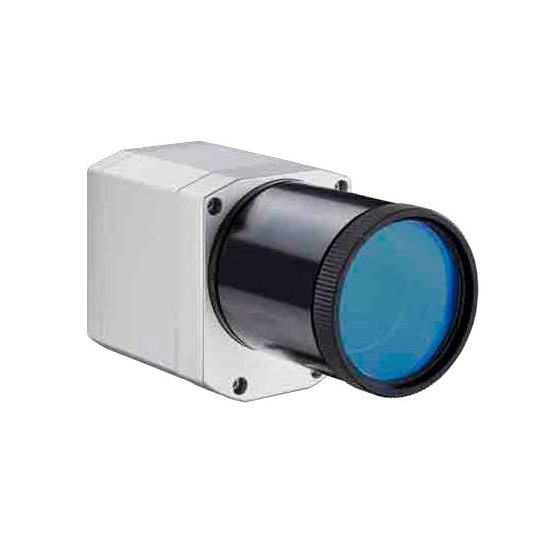

The "PI 1M" is a compact infrared camera designed for short wavelengths and metal surfaces. It features a flexible CMOS detector with an optical resolution of 764×480 pixels and a very wide temperature measurement range of 450 to 1800°C without sub-ranges. It blocks radiation above 540nm, making it suitable for solid-state lasers in the NIR (near-infrared) region. 【Features】 ■ Response time of 1ms with real-time output of 8×8 pixels ■ Equipped with license-free analysis software SDK ■ The new PI05M feature is ideal for all laser processing applications *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Technical Specifications (Partial)】 ■Storage Temperature: -40 to 70℃ ■Relative Humidity: 20 to 80% (No condensation) ■Enclosure (Size/Standard): 46×56×88-129mm/IP67 (NEMA4) ■Weight: 320g (including lens) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
