A ToF depth camera equipped with a 6-axis IMU that allows for synchronization of multiple units. This product is expected to perform well in the fields of healthcare, robotics, and augmented reality.

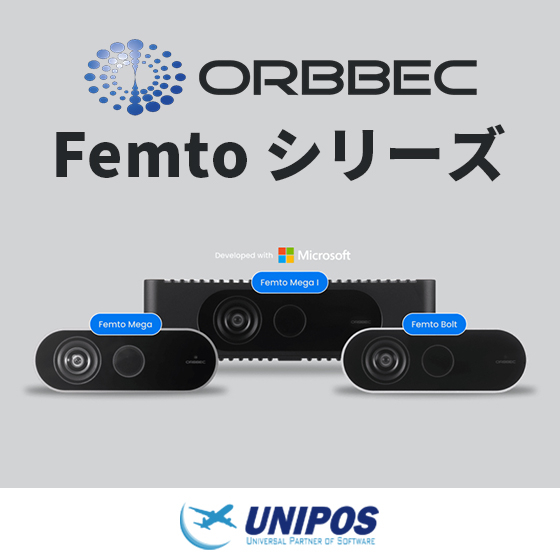

A ToF (Time of Flight) 3D camera capable of acquiring high-resolution depth data. It is equipped with a 6-axis IMU, supports synchronization with multiple units, and can capture images in low-light conditions. This product is expected to excel in the fields of healthcare, robotics, and augmented reality. Product lineup: - Femto Bolt: A model equipped with the same module as the Azure Kinect DK - Femto Mega I: An industrial model compliant with IP65 - Femto Mega: A model equipped with Jetson Nano - Femto W: A wide-angle model - Femto: Standard model Orbbec is participating in Microsoft's Azure Depth Platform, and this product incorporates technologies from Azure Kinect DK and Hololens.
Inquire About This Product
basic information
■Orbbec Femto ToF Camera Series - Supports low-light shooting - Applications for Microsoft Azure Kinect DK and Hololens ■Orbbec Femto Bolt - Maximum 1024x1024@15fps with WFOV - 4K RGB with HDR ■Orbbec Femto Mega I (for industrial applications) - IP65 dustproof and waterproof performance - Industrial-grade M12 X-coded Ethernet port - Sophisticated and precise synchronization trigger control for multi-sensor networks ■Orbbec Femto Mega (model with Jetson Nano) - RGB resolution up to 3840X2160@25fps - Supports PoE USB 3.0 and IMU ■Orbbec Femto W (wide-angle model) - Depth resolution up to 640X480@30fps - Supports multi-camera synchronization - IMU compatible ■Orbbec Femto (standard model) - High-quality depth data from 0.2m to 5m - Depth resolution up to 640X480@30fps
Price range
Delivery Time
Applications/Examples of results
【Main Uses】 - 3D vision and object recognition for robotics - Motion analysis for health tech and rehabilitation applications - Volumetric video recording for AR/XR/media production - Dimension measurement and inspection for logistics and shipping processes - Academic and development use as an Azure Kinect compatible platform
Detailed information
-
Orbbec Femto Bolt
-
Orbbec Femto Mega I
-
Orbbec Femto Mega
-
Orbbec Femto
Line up（5）
| Model number | overview |
|---|---|
| Orbbec Femto Bolt | - 1 Megapixel ToF sensor equipped 120°FOV depth camera - Maximum depth resolution of 1024x1024@15fps in WFOV and 640x576@30fps in NFOV - 4K RGB with HDR - 6DoF IMU - USB Type-C 3.2 for power and data - Sophisticated and precise synchronization trigger control for multi-sensor networks |
| Orbbec Femto Mega I | - 1 Megapixel ToF sensor equipped 120°FOV depth camera - 4K RGB with HDR - 6DoF IMU - IP65 dust and water resistance - Industrial-grade M12 X-coded Ethernet port (with PoE) - Sophisticated and precise synchronization trigger control for multi-sensor networks |
| Orbbec Femto Mega (Jetson Nano equipped model) | - Maximum horizontal 120°, vertical 120° wide field of view - Maximum depth resolution of 1024X1024@15fps in WFOV and 640X576@30fps in NFOV - Maximum RGB resolution of 3840X2160@25fps - Supports PoE USB 3.0 and IMU - Advanced and precise synchronization trigger for multi-sensor networks |
| Orbec Femto W (wide field of view model) | - Horizontal 90°, vertical 74° wide field of view - Maximum depth resolution of 640X480@30fps - Maximum RGB resolution of 3840X2160@30fps - Supports multi-camera synchronization - IMU compatible |
| Orbbec Femto (standard model) | - High-quality depth data from 0.2m to 5m - Maximum depth resolution of 640X480@30fps - Maximum RGB resolution of 1920X1080@30fps - Supports multi-camera synchronization - IMU compatible |
