Tohoku University Technology: Holographic optical element and its manufacturing method: T17-106
Conversion of depth information linearly into planar information!

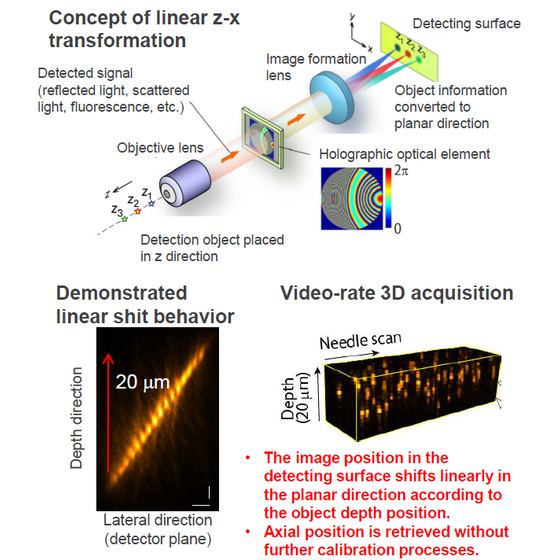

In 3D imaging, it is important to effectively encode z information, which is the image formation displacement of the target object, into XY information, which is displacement from the optical axis of the image surface. On the other hand, in single-pixel imaging using only a single detector, it is important to encode in efficient manner the XY information of the target into the time information. However, the conventional encoding method has a limit on distance resolution, imaging distance range, z information decoding accuracy and encryption uniqueness. This invention provides a new and improved hologram optical element, its manufacturing method and an optical device able to mutually convert Z & XY information with simple configuration. This invention is able to realize high accuracy and high spatial resolution for high-speed 3D imaging (patent US10816474) by converting the object depth direction information of the optical detection system into the planar direction information at the detecting surface.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
