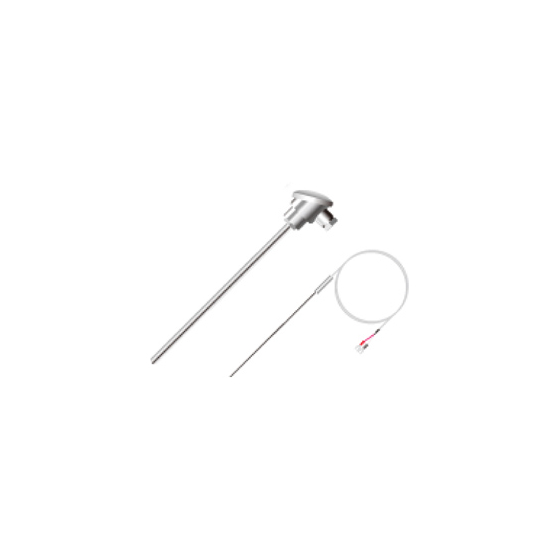

Temperature measuring resistance body with excellent responsiveness and seismic resistance.
The sheath temperature measuring resistance body has a structure in which magnesium oxide is filled between a metal protective tube (sheath) and the wire, providing excellent responsiveness and seismic resistance. It is also excellent for use at high temperatures. The diameter of the protective tube can range from Φ3.25 to Φ8. You can choose from straight types, L-shaped designs, and options with terminal boxes according to your application.
Inquire About This Product
basic information
Sheath outer diameter: 3.2mm, 4.8mm, 6.4mm, 8.0mm Sheath length: 100 to 1,000mm Material: SUS316 Types: Pt100 low temperature (temperature range: -200 to 100℃) Pt100 medium temperature (temperature range: 0 to 350℃) Pt100 high temperature (temperature range: 0 to 500℃) Grade: Class B, *Class A available upon request Element: 1 element *2 elements can be produced for sheath outer diameter of 4.8mm or more Temperature measurement contact: non-grounded type
Price range
Delivery Time
Applications/Examples of results
Fluid temperature, temperature in food manufacturing processes.
Detailed information
-
Terminal box equipped sheath temperature measuring resistance body
-
L-shaped sheath temperature measuring resistance thermometer
-
Metal connector type sheath temperature sensing resistor
