Realization of wear-free operation! Compact design is possible with an orthogonal layout of the input and output shafts.

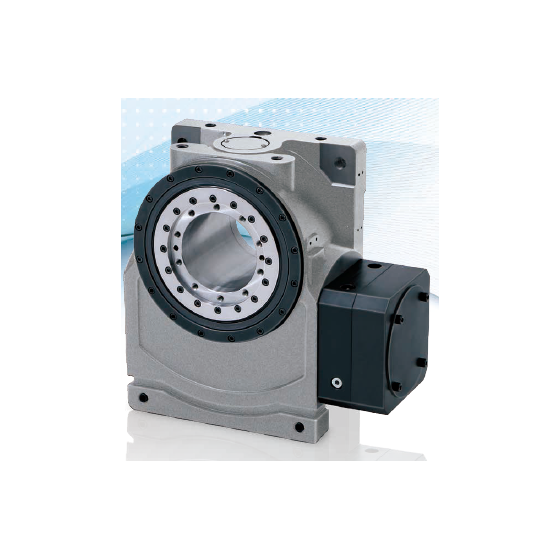

The "RollerDrive SP Series" is a welding positioner that achieves high efficiency through rolling transmission. By mechanically reducing the speed of the servo motor, it provides powerful torque, rigidity, and stability, while also enabling output motion that faithfully follows input control commands due to its unique preloading mechanism that eliminates zero backlash. It is an innovative FA motion control unit that also features ease of use, such as a standard large-diameter hollow shaft. 【Features】 ■ Load capacity: 300kg to 3,600kg ■ Large diameter hollow hole: φ245mm (SP360) ■ Slim body: 190mm (SP030 to SP060) ■ Repetition accuracy: ±0.03mm (SP030 to SP120) ■ Good stability allowing for reduced takt time ■ Durability that withstands the impact of emergency stops *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Outstanding)】 ■SP030 - Allowable load capacity: 300kg - Output table diameter: 155mm - Output hollow diameter: 120mm - Reduction ratio: 140 - Maximum rotational speed: 30min-1 (180°/sec) - Repetition accuracy: ±0.03 (R=250mm) - Instantaneous maximum allowable torque: 1,900N/m - Starting and stopping upper limit torque: 875N/m - Allowable moment load: 1,095N/m *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage Examples】 ■Cantilevered 2-axis welding positioner ■Double-supported BBQ welding positioner ■Horizontal 1-axis welding positioner ■Ferris wheel type welding positioner *For more details, please refer to the PDF document or feel free to contact us.
