Improved mold lifespan through high-precision positioning! Situation monitoring is possible from a distance thanks to communication capabilities.

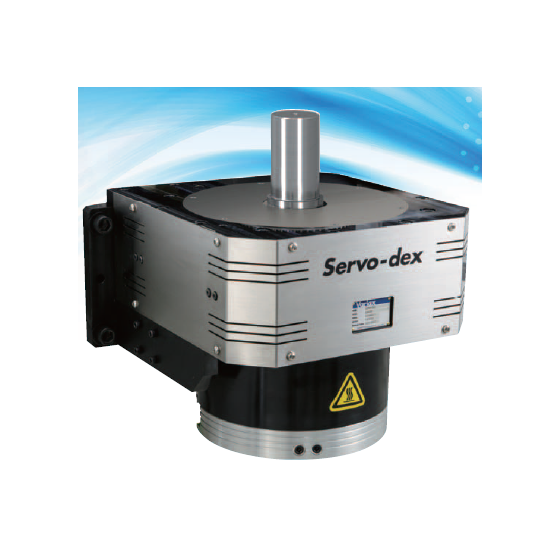

The "Servo-dex EVR1 Series" is a motor core transfer molding drive device suitable for the manufacturing press line of motor cores for hybrid vehicles, PHEVs, and EVs. By directly connecting a high-performance servo motor, it drives the transfer stacking at high speed and high torque, while allowing for free setting of the transfer angle. By suppressing vibrations during stops and achieving high-precision positioning, it reduces the maintenance of molds. 【Features】 ■ High-end model pursuing high speed, high precision, and multifunctionality ■ Ensures reliability through a unique vibration absorption structure ■ Supports arbitrary transfer angle settings and skew processing of motor cores ■ Achieves optimization of the motor core line by combining servo feeders and servo dex (transfer devices) *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■EVR1-160 - Load inertia guideline (max): 0.03kg/m2 - Allowable axial load: 100N - Allowable radial load: 1,200N - Air consumption: 100L/min - Operating air pressure: 0.4–0.5MPa - Product weight: 142kg *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
