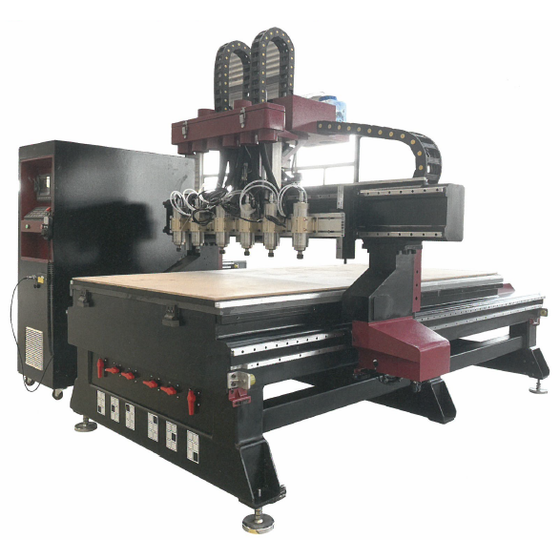

Shortening processing time and improving work efficiency! We will propose customized machines after discussing with the customer.
At High-Tech Creates Co., Ltd., we also accept orders for custom machinery. After discussing with the customer, we propose machines tailored to their needs. We can accommodate simultaneous 6-axis machining, modifications to peak light table surfaces, and suction systems. Please feel free to contact us when you need our services. 【Specifications (partial)】 ■ Movable range (X, Y, Z): X = 200mm, Y = 2400mm, Z = 200mm per unit ■ Main body size (W, L, H): W = 2140mm, L = 3200mm, H = 1960mm ■ Spindle motor: 2.2kw water-cooled 22000rpm high-frequency spindle ■ Machining speed: 1 to 6000 (mm/min) ■ Resolution: 0.01mm *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Other Specifications (Partial)】 ■ (X, Y, Z) Drive Control: Servo Motor ■ Voltage, Current (Machine Body Only): Single-phase 200V 20A ■ Axis Movement: X-axis, Y-axis, Z-axis Rack & Pinion ■ Guide Rail: THK Linear Guide Rail ■ Command Code: G-code *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Our company leverages the know-how we have cultivated over many years in FA, NC processing, and software development, as well as our experience in developing output (RIP) software for cutting and large printers, to provide high-precision CNC routers (large engraving machines) at affordable prices that meet the various needs of the sign printing industry. To ensure that our customers can create products that satisfy them, we offer total support by suggesting appropriate machine speeds, suitable tools, and cutting techniques.
