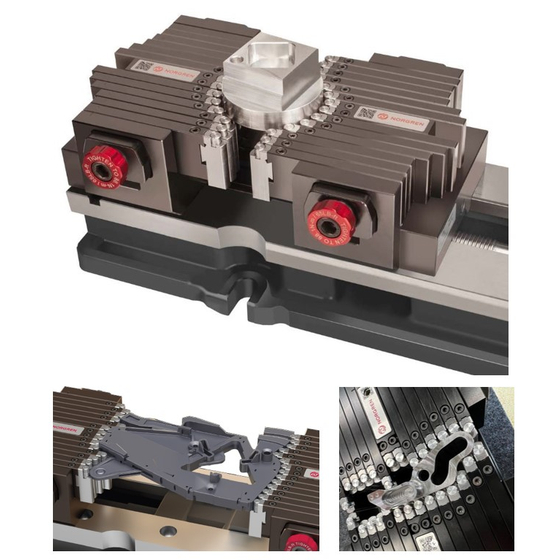

The Norgren Adaptix is a machining vice that can change its shape according to the workpiece shape.
●Features - It is a new technology that adapts to and holds various shapes of workpieces. - It enables a significant reduction in setup and changeover time. - It greatly reduces the time and manufacturing costs associated with the design and development of fixed jigs, as well as storage space. - It has excellent precision and reproducibility, eliminating the need for readjustment, allowing for repeated holding of irregularly shaped parts by opening and closing the adaptics. - It is designed with high strength and excellent corrosion resistance, ensuring that liquids and chips do not interfere with operation.
Inquire About This Product
basic information
Specifications Reproducibility: 25μm Maximum Clamping Force: 31kN Maximum Finger Stroke: 25mm Dimensions (Kurt Model): 78mm(H) x 210mm(W) x 102mm(L) Weight (Kurt Model): 8.16kg Finger Outer Diameter: 40mm(H) x 10mm(W) Material Housing: AISI4000 Alloy Steel Finger: AISI4000 Alloy Steel
Price information
Prices may vary depending on specifications and quantities, so please feel free to contact us at the email address below.
Price range
P5
Delivery Time
P4
※The delivery date may vary depending on the specifications and quantity, so please feel free to contact us.
Applications/Examples of results
CNC machining
Detailed information
-
Actual usage example 1
-
Actual Use Case 2
-
Actual Use Case 3
-
Actual Use Case 4
-
Example of actual use 5
Company information
- Our company is a manufacturer of pneumatic equipment with a sales network in 75 countries worldwide. - We are a global manufacturer of pneumatic equipment with a wide range of products including FRL, valves, cylinders, and fittings. - We focus on trucks, railways, plants, medical devices, and beverage machinery. - You can find more details on our website (https://www.norgren.com/jp/ja).
