The head part is a magnet, allowing it to be attached to metal parts for temperature measurement.
Magnetically designed for excellent cost performance. Utilizing the adhesive-type temperature sensor ST-50 series, it features a simple structure that allows for easy replacement of the sensor part, resulting in superior cost performance.
Inquire About This Product
basic information
Sensor Type: K Thermocouple Class 2 (JIS C 1602-1995) Magnetic Force: 3N to 7N (on a flat iron surface) Accuracy: ±2℃ (on a magnetic flat surface at 100℃) Temperature Measurement Range: 0 to 300℃ (without condensation) Response Time: STM-A-P/G-100: 0.5 seconds (90%) typical value STM-A-G-300/500: 1.5 seconds (90%) typical value *Place the sensor in a sufficiently room temperature environment, make instant contact of the sensor's temperature sensing part with a magnetic flat surface at 100℃, and evaluate at 90% of the stable point. Contact Plate Material: SUS304 Head (Body) Material: Liquid Crystal Polymer Sensor Material: STM-A-P-100: Polyimide Resin (using ST-51-100-C) STM-A-G-100/300/500: Glass Nonwoven Fabric (using ST-50 / ST-50-300 / ST-50-500) Mass: Approximately 10g
Price range
P1
Delivery Time
Applications/Examples of results
Measurement of the surface temperature of the mold. Measurement of the temperature of the motor body and bearing section.
Detailed information
-
Easily connect to the measuring instrument with a dedicated connector cable.
-

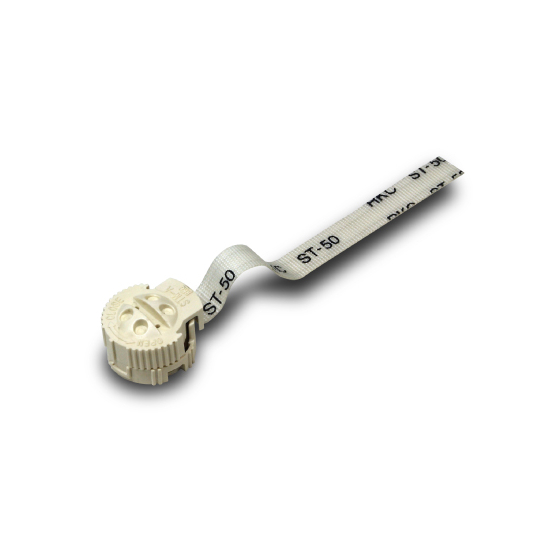

The sensor unit uses our ST-50 series. It has a simple structure and excellent cost performance.
