Metal filter (porous metal) porous metal body cermet
Metal filter (porous metal) porous metal body cermet

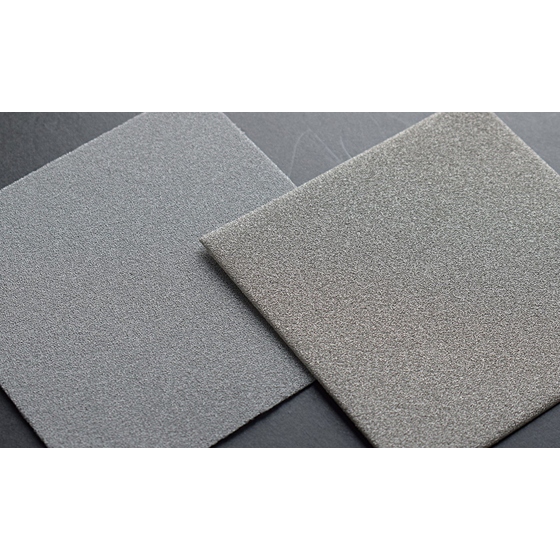

What is a cermet? A unique porous metallic body with a porosity of 98%.
<Features of Cermet> 1. Metal porous body with continuous pores Cermet has a continuous pore structure formed by three-dimensional triangular prism-shaped skeletons, which results in less clogging and lower pressure loss compared to sintered porous metal powders. 2. High specific surface area The pore diameter and thickness can be controlled to maximize the specific surface area. * Up to 8 times higher specific surface area compared to flat plates. 3. High porosity (98%) Even after rolling, it maintains a high porosity. - Compressed to half the thickness: Porosity is over 90% - Compressed to one-tenth the thickness: Porosity is over 50% * Porosity refers to the ratio of the volume of space to the total volume of the material, also known as void ratio. 4. Easy to process such as cutting and pressing Compared to metal fibers, porous ceramics, and metal meshes, it can be processed in various ways, including punching, bending, and pressing.
Inquire About This Product
basic information
Celmet is a porous metal body with a three-dimensional mesh structure. It has a lineup not only of primary nickel (Ni) but also of alloy systems such as Ni-Cr and Ni-Sn, and it is mass-produced primarily for batteries with the largest production capacity in the world.
Price range
Delivery Time
Applications/Examples of results
<Examples of Celmet Applications> 1. Catalyst support 2. Various filters 3. Electrode materials for water electrolysis devices 4. Current collectors and gas diffusion layers for fuel cells 5. Electromagnetic wave shielding Leveraging these unique features, in battery applications, improvements in the filling, retention, and conductivity of active materials are expected, and it continues to be adopted as a current collector for nickel-hydrogen batteries used in hybrid vehicles. Furthermore, in the anticipated "hydrogen society," a wide range of applications is expected in new fields, such as components for stationary and vehicle-mounted fuel cells and electrode materials for hydrogen generation devices, contributing significantly to the global environment and energy sectors.
