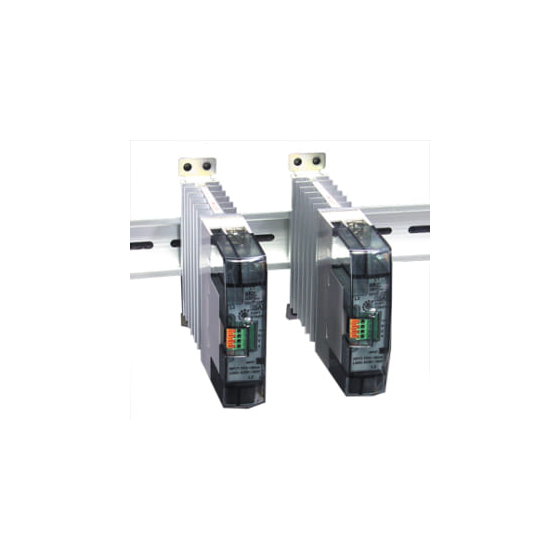

A slim power regulator with a width of 21.5mm. It can be easily combined with a temperature controller for temperature control.
DIN rail mount type slim power regulator Up to 8 units can be closely mounted Maximum load capacity: AC 15A, AC 25A Power supply voltage: AC 100-240V Control method: phase control, zero-cross control UL compliant Available for purchase at the online shop (Shop RKC)
Inquire About This Product
basic information
Control Method: Phase Control (SSNP Series), Zero-Cross Control (SSNZ Series) Maximum Load Capacity: AC15A, AC25A Applicable Load: Linear (R: Resistive) Load Input Signal: DC 4–20mA Minimum Load Current: AC100mA Note: For microcurrent loads, the conduction angle becomes narrower. Please confirm operation with the actual device during use. Leakage Current when Output is OFF: AC9mArms or less (Load Voltage 200Vrms 60Hz) Response Time: Less than 1 cycle (without soft start) *Turning the front volume fully counterclockwise will disable the soft start. Power Supply Frequency: 50/60Hz compatible (automatic detection) Standard Functions: Soft Start/Down Function: Approximately 0.5–13 seconds (SSNP Series), approximately 0.5–40 seconds (SSNZ Series), External Volume Function (for manual operation) *Volume is optional <General Specifications> Operating Temperature Range: -20 to +60℃ Power Supply Voltage (Rated): AC100–240V Weight: Approximately 260g Safety Standards: UL, cUL
Price range
Delivery Time
Applications/Examples of results
Heater control, temperature control
Detailed information
-
Outline dimension drawing
-
Ambient temperature characteristics
