Stable positioning accuracy and long-lasting performance! GPS tracker compatible with "MICHIBIKI" L1S.

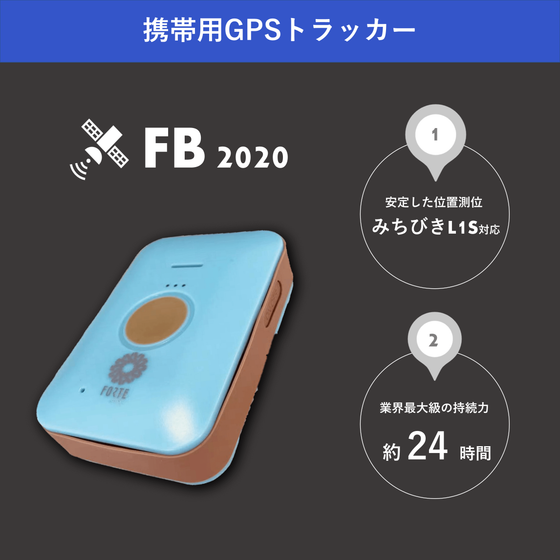

The "FB2020" is a portable 4G GPS tracker that can send location information via GPS to a server at regular intervals, allowing real-time confirmation of the current location of the equipped vehicle on the web. ■Features ♢ One of the longest-lasting in the industry, approximately 24 hours ♢ Achieves sub-meter level high-precision positioning with the quasi-zenith satellite system "Michibiki" L1S support ♢ Firmware customization available according to customer requests (additional modifications required) ■Main Functions ♢ Tracking: Sends GPS (location, speed) information to the application server at intervals of 5 seconds to 1 hour (while moving or stationary). ♢ SOS Button: Sends information when the button is pressed to the server. ♢ Battery Level Warning: A warning sound alerts when the battery level is low. ♢ Waterproof Case: The exterior is an IPX5 waterproof and dustproof case. ♢ OTA (Over the Air): Device configuration, settings, and firmware can be upgraded remotely. ♢ Sensors: Equipped with 3-axis accelerometer, gyro, and geomagnetic sensors (additional firmware development required).
Inquire About This Product
basic information
♢Dimensions: 86mm*58mm*27mm ♢Weight: 116g (without rubber case) : 138g (with rubber case) ♢Power Voltage: 3.4V～4.2V (rated 3.8V) ♢Battery Capacity: 3000mAh ♢Power Consumption: - Active: <228mA@3.8VDC : - Power-saving mode: < 72mA@3.8VDC ♢Operating Temperature: -20℃ ～65℃ ♢LED Indicators: Charging, GPS, Network status ♢Charging Method: Magnetic terminal charging ♢Built-in various antennas (GPS, 4G, 3G) ♢Tracking Sensitivity: -161dBm ♢Accuracy: <2m (CEP50) (open sky)
Price range
Delivery Time
Applications/Examples of results
■Case Examples ♢On-Demand Bus and Taxi Dispatch System → By pressing a button, user information and location data are sent to the management center for buses and taxis, and the pickup location along with user information is displayed on the in-vehicle tablet. → It can also be used as a mobility support system for pregnant women and the elderly. By registering the locations of their regular hospital or home in the user information, smooth transportation can be ensured even in emergencies. ♢Snow Removal Management System → It is possible to manage the location information of snow removal vehicles. By pressing the central button on the device (short press, long press), status management such as "Work Start," "Work End," and "SOS" becomes possible.
catalog（1）
Download All Catalogs
Company information
Forte Co., Ltd. is a company based in Aomori that develops software and hardware consistently using its unique IT technology. With the motto "Solving local issues connects to solving national issues," we continue to challenge ourselves to implement innovative solutions in society.
