Function tester capable of testing various DDR4 DIMMs.

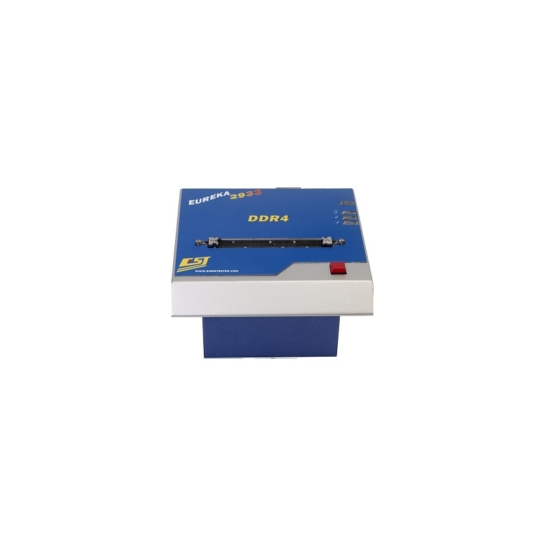

Eureka DDR4 2933 is a DDR4 DIMM/SODIMM function tester for memory distributors and module manufacturers, capable of testing DDR4 RDIMM (x4, x8), UDIMM (ECC/Non-ECC), SODIMM (ECC/Non-ECC), VLP-RDIMM, LRDIMM, and BGA chips.
Inquire About This Product
basic information
Eureka DDR4 2933 can be connected to a Windows PC using the included USB cable, and can be used immediately after installing the attached software. - Clock: 933, 1066, 1200, 1333, 1466 MHz - Data Rate: 1866, 2133, 2400, 2666, 2933 MHz - Address Depth: 4G Words capacity up to 18 Row x 15 Col - Data Width: Expandable to 72 Bits - Voltage: VDD 1.0 – 1.4, VPP 2.3 – 2.7 - DC Test Pattern: Walk Data, Address, CS, CKE, DQM, DQS Test - AC Test Pattern: Mat-S, March B, March X, March Y, March G, March U, Mov-I, Hammer Read Test - SPD Program: Write/Read 0 – 511, SWP, CWP
Price range
Delivery Time
Applications/Examples of results
It can be used for testing and screening of chips/modules at memory manufacturers, module manufacturers, and memory distributors.
catalog（1）
Download All Catalogs
Company information
Our company primarily focuses on the sale of duplicators for content distribution using various media, including flash memory, and also provides duplication services. Additionally, we have added media quality evaluation analyzers and MPEG encoder boards for video distribution to our lineup, and we will continue to introduce excellent advanced technology products.
