Extremely high detection performance! Our proprietary solar separation technology enables outdoor use.

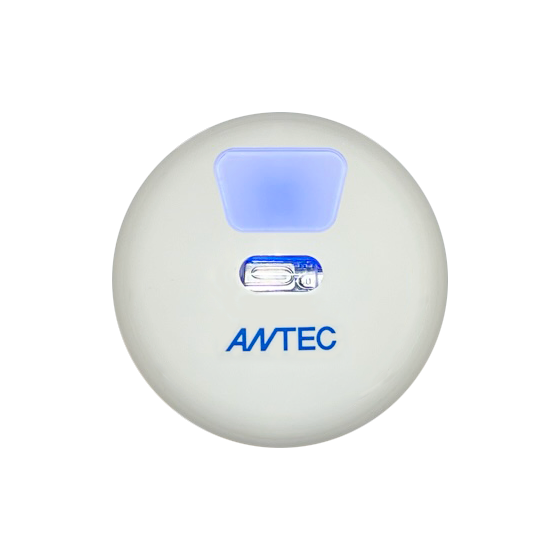

The SKH047M is a flame sensor that can detect flames equivalent to that of a lighter from a distance of 10 meters using a UV detection method. It instantly detects the ultraviolet rays emitted by flames from lighters or matches ignited by arsonists. Our flame sensor can be used outdoors due to its unique sunlight separation technology. It supports relay output, allowing it to drive alarm buzzers, rotating lights, voice synthesis units, and more. 【Features】 ■ Compliant with dustproof and waterproof standards (IP64) ■ High sensitivity for flame detection ■ Easy-to-change detection timer settings using DIP switches *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■Detection Method: Ultraviolet detection method (wavelength 185–260nm) ■Detection Capability: Detects flames equivalent to a lighter from a distance of 10m ■Detection Angle: 120° left and right, 120° up and down ■Detection Timer: 0.5, 1–31 seconds (configurable in 1-second increments) ■Power Supply Voltage: DC7–24V *For more details, please refer to the PDF document or feel free to contact us.
Price information
For more details, please contact our company.
Price range
P2
Delivery Time
P3
Applications/Examples of results
【Usage】 ■General indoor and outdoor equipment *For more details, please refer to the PDF document or feel free to contact us.
Detailed information
-
Detectable flames equivalent to a lighter at a distance of 10 meters!
catalog（1）
Download All Catalogs
Company information
At the time of our founding, we were engaged in the manufacture and sale of electronic devices for ceramics, centered around Bizen pottery, a local industry in Okayama where our headquarters is located. The technology we have cultivated over many years for managing and monitoring flames has transformed into ultraviolet application devices (flame detection sensors), and we are transitioning to become a sensor manufacturer primarily focused on flame detection sensors. Despite being the world's smallest size for outdoor use, our sensors boast the highest performance (capable of detecting a flame at a distance of 10 meters for a lighter-sized flame, and at 70 meters for a fire column of about 1 meter, with a minimum detection time of 0.5 seconds). Ultraviolet light is only found in natural environments in sunlight and flames. By utilizing the technology that "separates ultraviolet light" contained in sunlight and flames, we are developing flame detection sensors that can be used outdoors without receiving false alarms from sunlight. By applying this technology, we are creating products aimed primarily at protecting the assets of companies in the rare event of a fire, unlike conventional fire alarms (heat detectors, smoke detectors) which are designed for life-saving purposes.
