Ideal for positioning and assembly plates! Introducing examples of parts where the accuracy of hole and recess positioning is crucial.

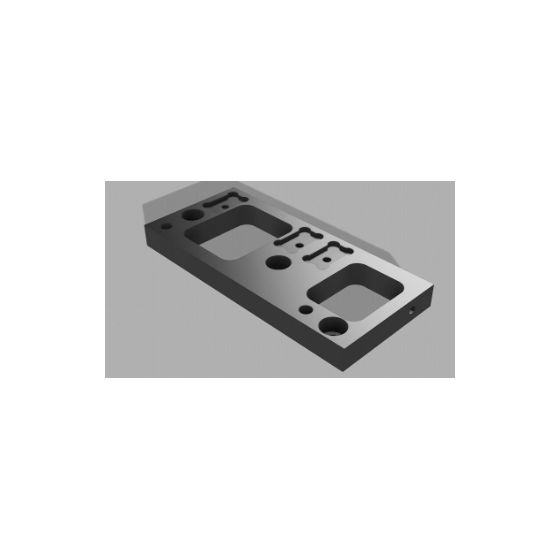

The product is a "die plate" used for industrial machinery, specifically utilized in the holder part of molds. The material used is S45C, and the size is 20×100×221. Its features include being a critical component where the positional accuracy of holes and recesses is important. In this way, our company has various achievements in parts processing, press mold manufacturing, reverse engineering, and more. If you have any concerns, please feel free to contact us. 【Processing Overview】 ■ Application: Positioning and assembly plate ■ Material: S45C ■ Size: 20×100×221 ■ Accuracy: ±0.01 to ±0.2 ■ Processing Method: Machining, polishing ■ Industry: All industries *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
