[Press Die and Parts Processing Product Example] Stripper Block S45C

The shape part is processed using a 3D model! An example where the positional tolerance between the shape part and the component injection part is within ±0.01.

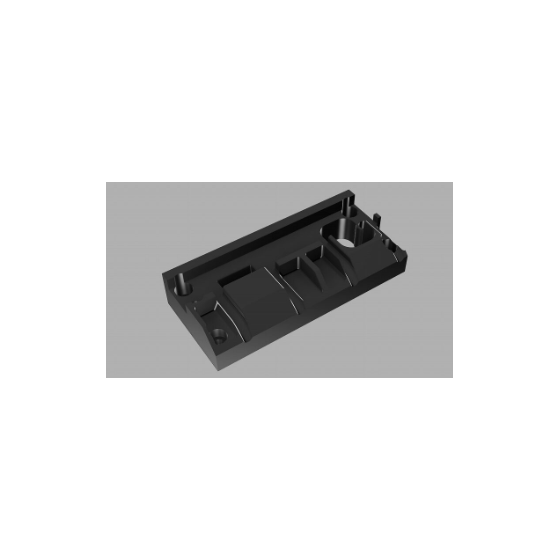

The product is a "stripper block" used for industrial machinery, and it was used as a plate holding component for molds. The material used is S45C, and the size is 43×110×225. As for the processing features, the shaped part was machined using a 3D model, and the positional tolerance between the shaped part and the component injection part was kept within ±0.01. In this way, our company has various achievements in parts processing, press mold manufacturing, reverse engineering, and more. 【Processing Overview】 ■ Application: Plate holding block ■ Material: S45C ■ Size: 43×110×225 ■ Accuracy: ±0.01 to ±0.2 ■ Processing Method: Wire cutting, polishing ■ Industry: All industries *For more details, please refer to the PDF document or feel free to contact us.
