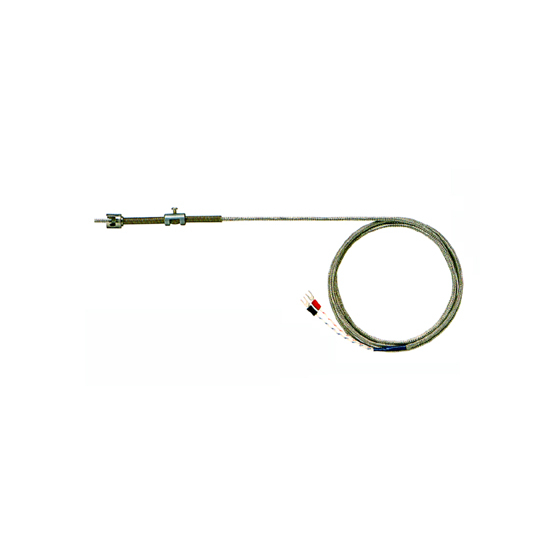

It is suitable for temperature measurement of hot runners and mold molds.
Using a mounting bracket (holder), the tip is pressed against the measurement target by a spring to measure the temperature. The position of the stop bracket is determined according to the insertion length, and the spring is secured with a fixing screw.
Inquire About This Product
basic information
Grade: Class 2 *Class 1 available for production (specification required at the time of order) Number of contacts: 1 pair type (standard) *2 pair type available for production (specification required at the time of order) Temperature measurement contact: grounded type *ungrounded type available for production (specification required at the time of order) Maximum operating temperature Type of thermocouple Normal limit Maximum limit K 300℃ 400℃ J 300℃ 400℃ T 200℃ 250℃
Price range
Delivery Time
Applications/Examples of results
Temperature measurement of plastic molding machines, cylinders, molds, and hot runner molds.
