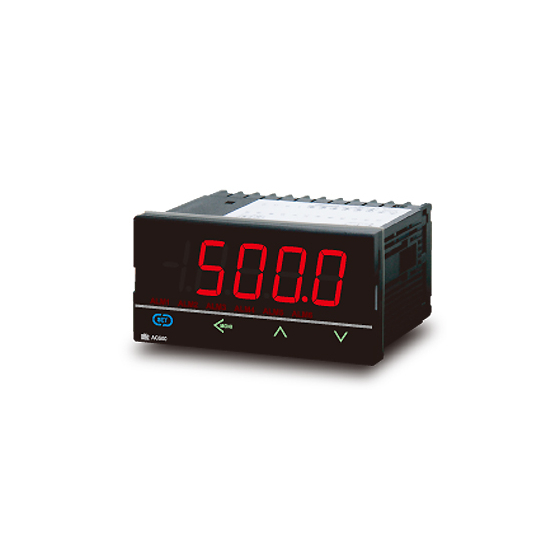

A display indicator equipped with clear visuals and a wealth of features. Compatible with thermocouples, platinum resistance thermometers, and DC voltage/current.
Measurement accuracy: ±0.1% of displayed value Sampling period: 0.1 seconds Up to 6 digital outputs can be added Up to 1 analog output can be added Up to 2 external contact inputs can be added Communication function can be added Plug-in structure Available for purchase at the online shop (Shop RKC)
Inquire About This Product
basic information
Input Types (Universal Input) Thermocouples: K, J, T, S, R, E, B, N, W5Re/W26Re, U, L, P LII Resistance Temperature Detectors: Pt100, JPt100 DC Voltage: DC0 to 10mV, DC-10 to 10mV, DC0 to 100mV, DC-100 to 100mV, DC0 to 1V, DC-1 to 1V, DC0 to 5V, DC1 to 5V, DC0 to 10V DC Current Input: DC0 to 20mA, DC4 to 20mA Sampling Cycle: 0.25 seconds Measurement Accuracy: ±(0.1% of displayed value + 1 digit) Hold Function: Holds the maximum or minimum value of the measurement Power Supply for Sensor: DC24V±1.2V or DC12V±1V <Optional Specifications> Alarm Function (up to 6 points): Upper limit input value alarm, lower limit input value alarm External Contact Input (2 points): Hold reset, interlock release Analog Transmission Output (1 point): DC voltage, current output Communication Function: RS-422A / RS-485 <General Specifications> Power Supply Voltage: AC100 to 240V / AC24V / DC24V Safety Standards: UL, cUL, CE marking, RCM
Price range
Delivery Time
Applications/Examples of results
Temperature measurement
Detailed information
-
Rich input and output functions It can simultaneously support up to 2 external contact inputs for convenient integration with peripheral devices, up to 6 digital outputs, 1 analog output, and all communication functions.
-
Can be equipped with a power supply for sensors.
Company information
Our company, as a service provider in measurement and control, is engaged in the sale of advanced products and research and development to meet the diverse needs of the industry through hardware (various control instruments such as industrial control devices for temperature, pressure, power, etc., communication converters that connect to field networks, control devices specially designed for customer equipment and machinery, and sensors for high-precision measurements of temperature, pressure, etc.) + software (proposals to customers, engineering, before-service, after-service, support) + peripheral device solutions.
