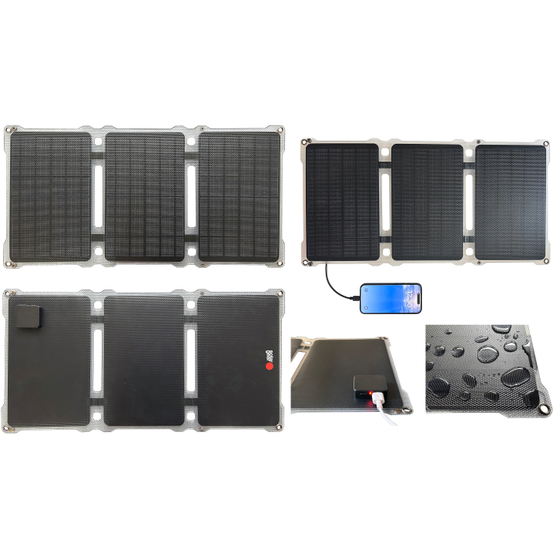

Light yet impact resistant A4 sized fold solar panels for charging up to 2 mobile appliances, such as smartphones, tablets and mobile batteries by sunlight.
Applications ■Solar chargers designed for charging mobile appliances, such as smartphones, tablets and mobile batteries by sunlight. Features ■No batteries or AC outlets necessary for safe charging and air transport all over the world. ■Light yet impact resistant A4 sized fold solar panels with high performance mono crystalline solar cells with 24% efficiency laminated with better light transmitting and long life ETFE. ■IP67 dust and water proof solar panels with USB ports with protection plugs. ■2 mobile appliances or mobile batteries can be charged simultaneously with 2 USB ports with total output current up to 2.4A (SG0514MN). ■High capacity mobile appliances or mobile batteries can be charged with 5V/2.4A USB output (SG0521MNE). ■Eqipped with an auto-resume charging function for fool-proof charging under unsettled weather. ■A tricolor LED indicates the charging status of the batteries (SG0514MN). ■A red LED on the junction box indicates that the solar panel is working (SG0521MNE).
Inquire About This Product
basic information
Specifications: SG0514MN ■Materials: ETFE＋EVA+mono crystalline solar cells＋EVA＋TPT＋ETFE Cell efficiency: 24% ■Max. output*: USB: 5V/2.4A *panel temperature 25ºC AM1.5 1kW/m2 ■Dimensions: 383X293X3mm (unfolded) 293X192X23mm (folded) ■Weight: approx. 450g (excl. accessories) ■Mounting holes: 8mm grommet X 4 ■Output terminals: 2 USB ports with protection plugs ■Charging indicator: tricolor LED ■Safety features: DC-DC converter with auto-resume charging function ■Protection level: IP67 ■Operating temperature: -10 - 60ºC Made in China SG0521MNE ■Materials: ETFE＋EVA+mono crystalline solar cells＋EVA＋TPT＋ETFE Cell efficiency: 24% ■Max. output*: USB: 5V/2.4A *panel temperature 25ºC AM1.5 1kW/m2 ■Dimensions: 580X293X3mm (unfolded) 293X192X32mm (folded) ■Weight: approx. 680g (excl. accessories) ■Mounting holes: 8mm grommet X 4 ■Output terminals: a USB port with protection plug ■Safety features: DC-DC converter with auto-resume charging function ■Charging indicator: a red LED ■Protection level: IP67 ■Operating temperature: -10 - 60ºC Made in China Warranty ■1 year from the date of purchase Design and specifications are subject to change without notice.
Price information
Item number: SG0514MN Online special price: 5,980 yen (including tax) Item number: SG0521MNE Online special price: 6,980 yen (including tax)
Price range
P1
Delivery Time
P2
※Please feel free to contact us.
Applications/Examples of results
Please contact us for inquiries about applications and examples of achievements.
catalog（1）
Download All Catalogs
Company information
Our company is a specialized manufacturer of small solar cell modules and independent solar power generation systems, established in 2000. In addition to our own brand of consumer-oriented portable systems, the "Solar Gear" series, we produce various industrial and commercial lightweight and slim modules and independent systems that supply power to low-power devices such as communication and network equipment, sensors, monitoring devices, and lighting. Moving forward, we will actively contribute to the preservation of the global environment and the realization of a circular economy and low-carbon society by promoting the transition of energy systems from fossil fuels to renewable energy and from centralized and grid-connected systems to decentralized and independent systems through the pursuit of innovative technologies in solar cell modules and their application products.
