It can also be used when the boss thickness is relatively thin! Standard type and flange type are available in the lineup.

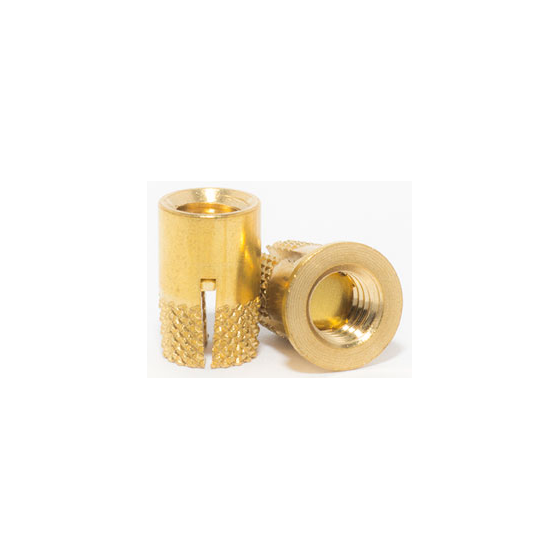

We handle the "Dodge Insert SD/FD," which is a type of expansion system that can accommodate a wide range of applications regardless of the material of the counterpart. By pushing down the expansion plate to the specified position, the knurled part expands and exerts force. Therefore, it can also be used when the boss thickness is relatively thin. The screw management standard is JIS Grade 2, and we offer the standard type "SD" and the flange type "FD." 【Specifications】 ■ Usage method: Expansion type ■ Compatible resins: Thermosetting and thermoplastic ■ Material: Brass ■ Screw management standard: JIS Grade 2 * Excluding the slotted part * For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【How to Use】 ■Insert the counterpart hole set ↓ ■Press in ↓ ■Push down the expansion plate *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
