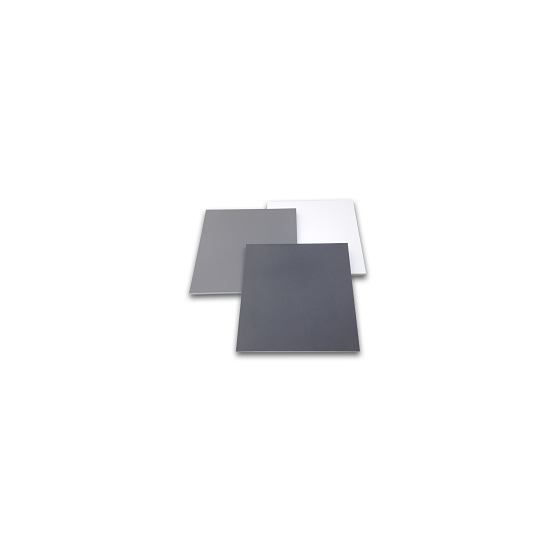

Durable large reflective standard plate for LiDAR testing.
The Permaflect by Labsphere is an ideal large standard reflector for LiDAR testing targets, providing stable grayscale under any lighting conditions. The surface of the Permaflect target has uniform spectral reflectance characteristics, is free of polarization, does not fluoresce, and is made of a hydrophobic material that exhibits diffusion reflection very close to Lambertian reflection. Additionally, it is physically robust, thermally stable, and has excellent UV resistance and weather resistance, making it suitable for long-term on-site calibration. The Permaflect is available in three models—Rigid, LiDAR, and Commercial—depending on application and budget. 【Features】 ■ Durable large diffusion reflector ■ Usable in outdoor, underwater, and high-humidity environments ■ Washable ■ Can be coated on objects of any shape or size ■ Offers three models to suit different applications and budgets *For more details, please refer to the catalog. Feel free to contact us with any inquiries.
Inquire About This Product
basic information
【Types of Reflectivity】 5%, 10%, 18%, 50%, 80%, 94% Six types are available. 【Effective Surface Size and Weight】 0.5 m × 0.5 m・2.0 kg 1.0 m × 1.0 m・8.0 kg 1.5 m × 1.5 m・18.0 kg 1.2 m × 2.4 m・23.0 kg * The 1.5 m x 1.5 m and 1.2 m x 2.4 m are available only in LiDAR type and Commercial type. * For more details, please refer to the catalog. Feel free to contact us as well.
Price range
Delivery Time
P4
※Consultation available for large reflectors.
Applications/Examples of results
- Calibration of LiDAR (target material) - Reference plate for optical camera sensor calibration - Calibration of onboard LiDAR and ADAS sensors - Measurement target for human detection sensors (mannequin) - On-site calibration of hyperspectral cameras - Observation of surface reflectance (albedo measurement) characteristics using drones - Calibration of medical instruments *For more details, please refer to the catalog. Feel free to contact us as well.*
Detailed information
-
Excellent durability, suitable for outdoor use.
-
Spectral reflectance data
Line up（3）
| Model number | overview |
|---|---|
| Rigid Model | Entry type focused on cost performance |
| LiDAR Model | Attached reflectance data specialized for LiDAR testing |
| Commercial Model | Covers a wide range of applications such as ground inspection using LiDAR, ToF cameras, and aerial image systems |
