The work size is a maximum of φ260mm × t0.5mm! We can also accommodate bevel cuts and groove machining!
Cutting processing is a method of cutting and shaping the target object, and by selecting the appropriate method, high precision processing can be achieved. "Dice cutting processing" involves mounting on dicing tape that matches the product and processing conditions, allowing for high-precision alignment cutting according to dicing cuts or patterns, as well as bevel cuts and groove processing. The main processing materials include alumina, aluminum nitride, and glass materials. 【Work Size】 ■ Maximum φ260mm × t0.5mm (High torque dicer φ300mm × t3.0mm) ■ Minimum cutting dimension: 0.2mm ■ Cutting precision: ±0.01mm *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information

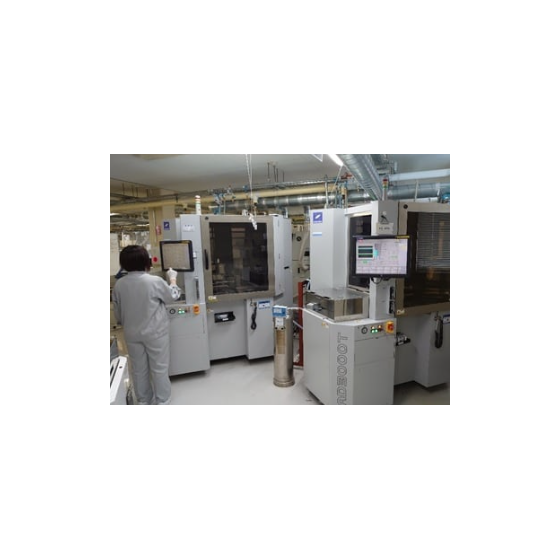

[Equipment Owned] ■ 12-inch square table specification full-auto die saw with twin spindles ■ 8-inch table semi-auto die saw with 3-inch blade and 2-inch blade specifications ■ 6-inch table semi-auto die saw ■ Frame size 6-inch specification *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
Main Processing Materials ■ Alumina, Aluminum Nitride, Barium Titanate, Glass Material, Silicon Wafer, Glass Epoxy Resin Substrate, Piezoelectric Ceramic *For more details, please refer to the PDF document or feel free to contact us.
Company information
Shinko Co., Ltd. is a company in Uonuma City, Niigata Prefecture that works on material development and precision machining of hard-to-cut or brittle materials. Our company has been certified by Mitsuke City as a "Mitsuke SDGs Partner," a business or organization promoting SDGs together with Mitsuke City. We can meet a variety of needs, like new product development, with our ability to handle everything from prototyping to mass production and our high-precision machining skills.
