High viscosity dispensing 1,000 Pa·s! Minimum dispensing volume 1 nL (nanoliter). High precision dispenser "Micro Hand Dispenser."

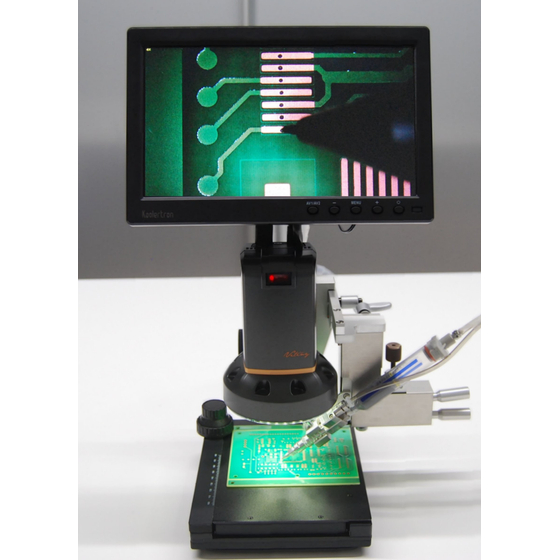

This series is a micro hand dispenser suitable for manual work. It can be easily operated and displayed on a high-resolution LCD monitor. It is capable of dispensing various liquids such as Ag paste, Cu paste, titanium oxide, and solder paste. It is ideal for manual assembly and placement on high-density wiring boards.
Inquire About This Product
basic information
【Features】 ■ Stable discharge achieved with self-sack-back mechanism ■ High viscosity discharge: 1,000 mPa·s ■ Observation possible with high-resolution digital microscope and LCD monitor ■ Coating position can be contacted with lever operation *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
Application of small amounts of various liquid agents - Pre-soldering, repair, rework, additional soldering - Underfill, overcoat - Bonding of precision components - Carbon black ink, titanium oxide - Metal nanopaste, conductive paste - UV-curable resin, thermosetting resin - Polyimide, varnish
Detailed information
-
The photo shows the appearance of solder paste being dispensed at approximately Φ100μm.
Company information
Engineering Lab, as a professional in fine coating, develops, manufactures, and sells precision coating equipment. We offer a lineup specialized in precision coating, including the "Twin Air Dispenser," which utilizes patented technology to achieve the world's smallest coating, the high-speed precision coating piezo jet dispenser "X-JET," and the "Spiral Coater," which allows spray coating without the need for masking. We enable high-precision micro-coating of high-viscosity liquids that was difficult with conventional technology, achieving ultra-fine coating with a minimum application amount of 20 pL. Additionally, Engineering Lab offers a wide range of inline fully automatic coating equipment suitable for mass production and tabletop coating devices suitable for R&D, providing the optimal coating equipment according to application and work size.
