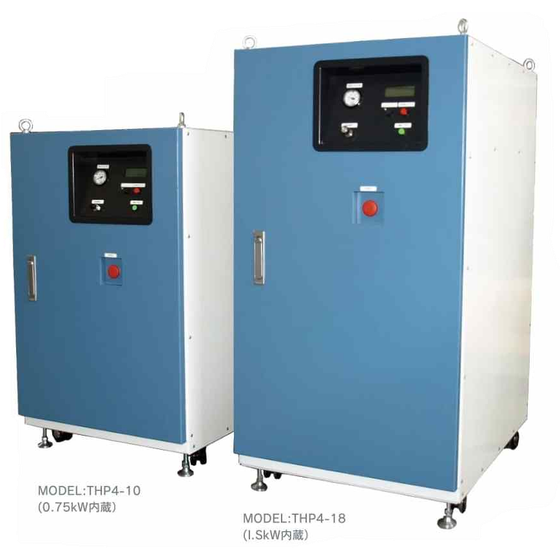

Achieves significant miniaturization and cost performance while maintaining the features of the higher-end TAC series equipped with energy-saving driving.
Microcontroller-controlled oil-free babycon built-in nitrogen gas generator Achieves low cost with simple functionality while maintaining the same performance as higher-end models. Necessary information can be displayed on the LCD panel. - Built-in oil-free babycon Equipped with an oil-free babycon using a domestic manufacturer's three-phase motor, enhancing reliability and durability. - Built-in inverter, no specific installation location required The oil-free babycon is controlled by an inverter, allowing for the same performance at both 50/60Hz. Single-phase 200V is also selectable, making it possible to install in general offices without three-phase power. - Long maintenance cycle for cost-effectiveness The unit switching valve employs an air-operated valve, and the maintenance cycle for the PSA unit is 20,000 hours, ensuring long life. The compressor has a durability of 10,000 hours in continuous operation and can be easily replaced by users.
Inquire About This Product
basic information
Nitrogen gas purity: 99 to 99.999% Nitrogen gas generation rate: 0.6 to 3.3 Nm3/h Discharge pressure: 0.5 MPa to 0.6 MPa Power supply voltage: 200V/220V (50/60Hz) *Please check the specifications for details.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
- Preservation of food flavor and internal pressure maintenance - Atmosphere gas for soldering and reflow ovens - Supply gas for analytical instruments and experimental equipment - Water treatment (deoxygenated water for corrosion prevention and explosion-proof applications, boiling sterilization, steam sterilization, and other industrial water) - Prevention of chemical degradation and explosion-proof applications for flammable visible substances - Prevention of alteration and discoloration during metal welding - Prevention of alteration and discoloration during resin molding
