Measures against traffic congestion or speed control! A simple vehicle detection system that achieves cost and labor reduction.

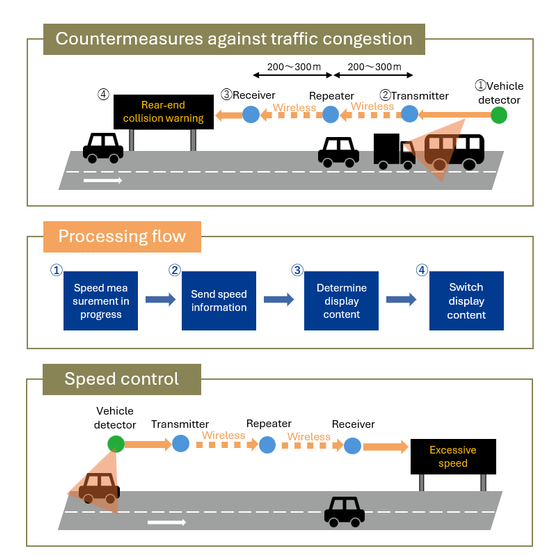

This product is a system that receives speed information from a simple vehicle detection device and automatically controls an LED information board. Its main applications are for traffic congestion measures or speed control. By automating the series of operations for switching the information board display through wireless communication and software, we have achieved a reduction in costs and labor. 【Features】 - Since the analysis of speed information does not use a server, the display switching of the information board can be done immediately. - The wireless network uses the Zigbee protocol of a mesh network. - Communication range: 200m to 300m (extendable up to 12 hops with repeaters) - Running cost: No communication fees - Records speed information, display switching information, and timestamps, allowing for data output. - Designed for operation over relatively short distances of about 1 km. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Application Examples】 ■ Simple Vehicle Detection Linked System (N Version) - A system that receives speed data output from multiple simple vehicle detectors at a control server, automatically determines traffic congestion, and displays the information on multiple portable information boards. ■ Simple Vehicle Detection Linked System (3G Version) - A system that uses 3G radio waves (FOMA network) to receive speed data output from multiple simple vehicle detectors at a control server, automatically determines traffic congestion, and displays the information on multiple information boards using 3G radio waves (FOMA network). *For more details, please refer to the PDF materials or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■Traffic congestion measures or speed control *For more details, please refer to the PDF document or feel free to contact us.
