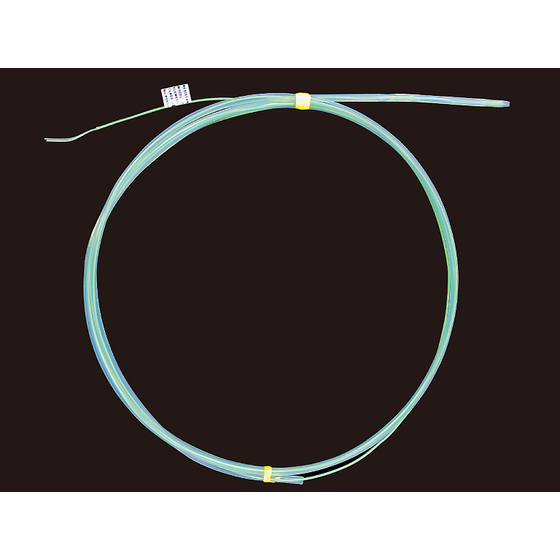

PFA (fluoropolymer) coated temperature sensor (thermocouple and resistance temperature detector)
FT-100、FR-100
A temperature sensor with excellent chemical resistance and moisture resistance, coated with PFA (fluororesin).
It has excellent chemical resistance. A PFA (fluororesin) tube is used for the protective tube, making it ideal for temperature measurement of corrosive liquids and similar substances. It is also suitable for measuring in high humidity environments. Since the entire temperature sensing section to the lead section is covered with PFA, stable temperature measurements can be expected for long periods in both chemical and high humidity environments. We can manufacture it to your desired protective tube length and lead length. The protective tube length can be made up to a maximum of 5000mm, and the lead length can be made up to a maximum of 9000mm, according to your specifications.
Inquire About This Product
basic information
PFA Coated Thermocouple FT-100 Type, Tolerance: K Thermocouple Class 1 (JIS C1602-1995) Measurement Range: 0 to 200℃ (measuring part) *No condensation outside the protective tube Measurement Accuracy: ±1.5℃ (insertion length of 100mm or more) Protective Tube Material: PFA (Fluororesin) Allowable Bending Radius of Protective Tube: 15mm (excluding 90mm from the tip of the measuring part) Lead Wire Diameter: 1.0×1.6 (short diameter × long diameter) mm Conductor Composition: φ0.32mm × 1 piece PFA Coated Temperature Resistance Sensor FR-100 Type, Tolerance: Pt100Ω Temperature Resistance Sensor Class A (JIS C 1604-1997) Measurement Range: 0 to 200℃ (measuring part) *No condensation outside the protective tube Measurement Accuracy: ±(0.15 + 0.002|t|)℃ (t is the measurement temperature) Specified Current: 2mA (JIS C 1604-1997) (insertion length of 100mm or more) Protective Tube Material: PFA (Fluororesin) Lead Wire Diameter: φ1.7mm Conductor Composition: φ0.1mm × 7 pieces
Price range
Delivery Time
Applications/Examples of results
Measurement of liquid temperature in the washing tank, measurement of chemical solution temperature in the chemical supply device.
Detailed information
-
Structural diagram
-
Application
Company information
Our company, as a service provider in measurement and control, is engaged in the sale of advanced products and research and development to meet the diverse needs of the industry through hardware (various control instruments such as industrial control devices for temperature, pressure, power, etc., communication converters that connect to field networks, control devices specially designed for customer equipment and machinery, and sensors for high-precision measurements of temperature, pressure, etc.) + software (proposals to customers, engineering, before-service, after-service, support) + peripheral device solutions.
