A serious competition where everything is one-of-a-kind! Understanding product characteristics, considering materials, structures, and mechanisms for design and manufacturing.

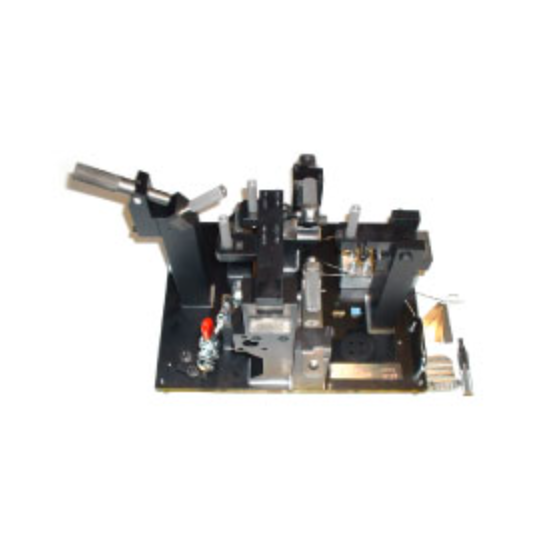

We would like to introduce our "inspection fixtures." Based on the 3D data of the product, we understand the characteristics of the product and consider the materials, structure, and mechanisms to design and manufacture fixtures that meet the customer's requested measurement points, methods, and accuracy. Since most products are formed in three dimensions, gauges are often three-dimensional as well to accurately evaluate these products. 【Common Customer Requests】 ■ Want to reduce weight ■ Want to improve accuracy ■ Want to replicate the actual vehicle state for static and dynamic testing ■ Want to make product attachment and detachment easier ■ Want to inspect both individual parts and assemblies *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Takafune's Problem-Solving Ability】 ■Case 1: The product ribs, etc., are close together and would wear out with standard chemical wood, but using metal machining would increase costs. → We produced it by partially embedding a hard chemical wood alternative to aluminum. ■Case 2: Dedicated inspection jigs for each product incur significant lead time and costs. → By dividing the design into shared parts like the base and dedicated parts, and reusing the shared components, we were able to compress the construction period and costs, and it also became easier to secure storage space. ■Case 3: We want to improve the usability of the confirmation jigs used in the manufacturing line. → We changed from a "screw-in fixation" to a "one-touch clamp method," which led to improved usability. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Takafune Industrial Co., Ltd. has built its business by harnessing the combined strengths of each section as a driving force for creating new technologies. The reality is that in a rapidly changing economy and social environment, merely manufacturing products is not enough to remain in the market. The essence of manufacturing must be accompanied by technology that adds value, rather than just ending in mass production. Moving forward, we aim to deliver products that align with the trends of the times through our integrated strengths in a threefold approach.
